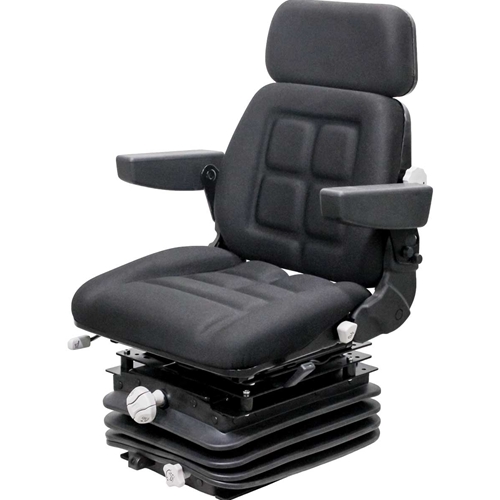

Case 90-94 Series KM 1004 Seat & Mechanical Suspension - Black Fabric
$932.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
Complete seat and suspension kit for Case® 90-94 Series tractors.
The Uni Pro™ - KM 1004 Seat & Suspension is a seat and mechanical suspension assembly that fits multiple applications.
The Uni Pro™ - KM 1004 Seat & Suspension is a seat and mechanical suspension assembly that fits multiple applications.
Special Notes
Please Note: If your tractor is a 1690, this application will only work if your original seat suspension is a Grammer DS-85 or MSG-85.
The 1004 Seat does not allow for an Operator Presence Switch.
The 1004 Seat does not allow for an Operator Presence Switch.
Available Options
4 Total Upsell Products
Specifications
Features:
- Durable black fabric covering
- Removable headrest
- Vacuum formed cushions add comfort and durability
- Seat cushion width of 17.75"
- Seat index point of 1.38"
- Extendable and foldable backrest with angle adjustment
- Mechanical adjustable lumbar support
- Fold-up armrests
- Seat belt fixation points
- Swivel
- Adjustable slide rails with 8.25" of travel
- Suspension travel of 4"
- Manual weight adjustment of 286 lbs
- 2.75" stroke reducer
- Durable suspension cover to keep components free of dirt and dust
Seat & Suspension Kit (PN: 6516) Includes:
- Uni Pro™ - KM 1004 Seat & Mechanical Suspension
- Swivel
- Install Hardware
- Installation Instructions
Available Options:
- Lap Belt Kit (PN: 7911)
- Retractable Seat Belt Kit - 45.5" Long (PN: 7925)
- Retractable Seat Belt Kit with Switch - 47" Long (PN: 8443)
- Orange Retractable Seat Belt Kit - 51.5" Long (PN: 8590)
- Replacement Armrests (PN: 8644)
Applications
Case® 90-94 Series Tractors:
- 90 Series: 1290, 1390, 1490, 1690, 2090, 2290, 2390, 2590, 4490, 4690, 4890
- 94 Series: 1294, 1894, 2094, 2294, 2394, 2594, 3294, 3394, 3594
- Tractor: 1896, 2096
