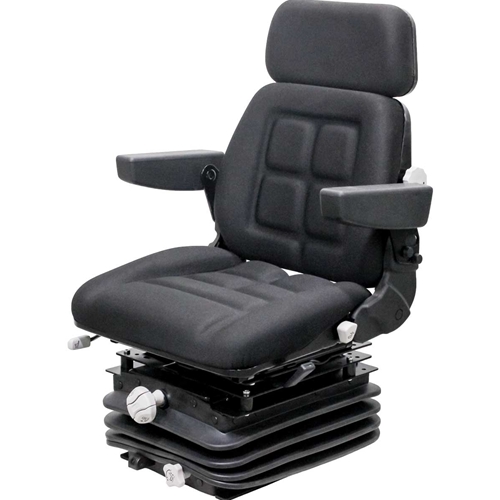

Case IH Steiger 9100 Series/Steiger KM 1004 Seat & Mech Suspension

SKU: 6545

$932.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

Complete seat and suspension kit for Case IH® Steiger® 9100 Series and Steiger® Series tractors.

The Uni Pro™ - KM 1004 Seat & Suspension is a seat and mechanical suspension assembly that fits multiple applications.

Special Notes

Please Note: The 1004 Seat does not allow for an Operator Presence Switch.

Replacement option for Case IH® Steiger® 9100 Series and Steiger® tractors if original seat manufacturer was Grammer.

Available Options

KM 47.5" Long Lap Belt

SKU: 7911

$52.00

KM 45.5" Long Retractable Seat Belt Kit

SKU: 7925

$99.00

KM 47" Long Retractable Seat Belt wit...

SKU: 8443

$146.00

KM 51.5" Retractable Seat Belt Kit - ...

SKU: 8590

$79.00

Specifications

Features:

Durable black fabric covering
Removable headrest
Vacuum formed cushions add comfort and durability
Seat cushion width of 17.75"
Seat index point of 1.38"
Extendable and foldable backrest with angle adjustment
Mechanical adjustable lumbar support
Fold-up armrests
Seat belt fixation points
Swivel
Adjustable slide rails with 8.25" of travel
Suspension travel of 4"
Manual weight adjustment of 286 lbs
2.75" stroke reducer
Durable suspension cover to keep components free of dirt and dust

Seat & Suspension Kit (PN: 6545) Includes:

Uni Pro™ - KM 1004 Seat & Mechanical Suspension
Swivel
Install Hardware
Installation Instructions

Available Options:

Lap Belt Kit (PN: 7911)
Retractable Seat Belt Kit - 45.5" Long (PN: 7925)
Retractable Seat Belt Kit with Switch - 47" Long (PN: 8443)
Orange Retractable Seat Belt Kit - 51.5" Long (PN: 8590)

Available Maintenance Item:

Replacement Armrests (PN: 8644)

Applications

Case IH® Steiger® 9100 Series Tractors with Original Grammer Seat:

Steiger® 9100 Series: 9110, 9130, 9150, 9170, 9180, 9190

Steiger® Series Tractor with Original Grammer Seat:

Lion 1000
Bearcat 1000
Bearcat III Series: PT225, ST220, ST225
Bearcat IV Series: CM225, KM225
Cougar 1000 Series: CR1225, CR1280, KR1225, KR1280
Cougar III Series: ST270, ST280
Cougar IV Series: CM250, CM280, CS280, KM280, KS280
Panther 1000 Series: CP1325, CP1360, CP1400, KP1325, KP1360, KP1400
Panther III Series: PTA297, PTA310, PTA325, ST310, ST320, ST325, ST350
Panther IV Series: CM325, CM360, CS325, CS360, KM325, KM360, KS325, KS360, SM325
Tiger III Series: ST450, ST470
Tiger IV Series: KP525
