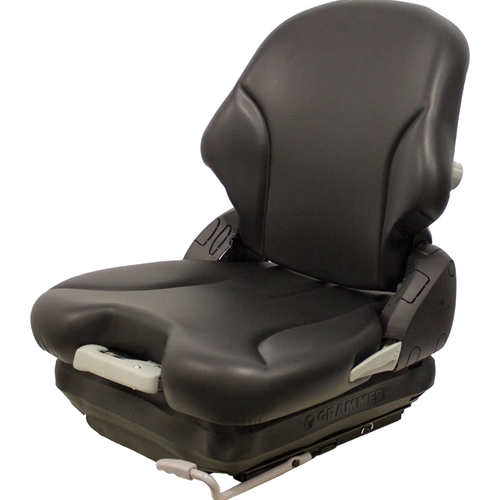

Kubota BX1800-BX2300-BX2600 Series KM 136 Seat & Suspension Kits
$932.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
Use the Uni Pro™ - KM 136 Seat & Suspension as a premium replacement seat with air or mechanical suspension in your Kubota® BX1800, BX2300 or BX2600 Series compact tractor to add comfort while you’re busy at work. The KM 136 Seat is designed to significantly reduce vibration and can offer every operator the ultimate level of individual comfort.
Special Notes
Please Note: This seat and suspension kit mounts down solid to the tractor and is not designed to tip forward. Customer will lose the ability to tip seat forward and also the ability to run PTO while the seat is tipped forward and off the tractor, unless other measures are taken, which are the buyer's responsibility if they wish to keep this feature.
Available Options
5 Total Upsell Products
Specifications
Features:
**Replacement parts for Mechanical Suspension Seat (PN: 6825) only.
- Durable Black Vinyl covering
- Mechanical suspension with suspension travel of 2.38" (standard on PN: 6825)
- Low-profile air suspension with 12-Volt compressor with suspension travel of 3.1" (standard on PN: 6851)
- Vacuum formed narrow seat cushion of 18.5"
- Asymmetrical backrest shape to make driving backwards more comfortable
- Adjustable backrest adds comfort and versatility
- Mechanical lumbar support to help prevent lower back pain
- Retractable seat belt for added safety
- Shock absorber (standard on PN: 6851)
- Adjustable slide rails provide 8.3" fore/aft adjustment
- Set slides at 11.25" W or 12.91" W
- Weight indicator with adjustment of 100 - 375 lbs
- Operator presence switch
- Seat bracket and mounting hardware included for easy installation
- Grammer Mechanical MSG65/531 Seat
- Seat Bracket
- Operator Presence Switch Harness
- Bolt Bag
- Grammer Air MSG75/531 Seat
- Seat Bracket
- Operator Presence Switch Harness
- Bolt Bag
- Mechanical Seat & Suspension in Black Vinyl (PN: 6825)
- Air Seat & Suspension in Black Vinyl (PN: 6851)
- Left-Hand Armrest (PN: 7885)
- Right-Hand Armrest (PN: 7884)
- Headrest in Black Vinyl (PN: 8015)
- Document Pouch (PN: 8450)
- Isolator Kit (PN: 7918)
- Replacement Backrest Cushion in Black Vinyl (PN: 8151)
- Replacement Seat Cushion in Black Vinyl (PN: 8152)
- Replacement Backrest Cushion in Black Fabric (PN: 8172)
- Replacement Seat Cushion in Black Fabric (PN: 8173)
- Replacement Retractable Seat Belt Kit (PN: 7887)
- Replacement Seat Belt Cover Kit (PN: 8370)
- Replacement Operator Presence Switch (PN: 8672)
- Replacement Weight Adjustment Handle Kit** (PN: 8088)
- Replacement Weight Adjustment Handle Kit & Block** (PN: 8593)
- Replacement Backrest Adjustment Handle Kit (PN: 8399)
- Replacement MSG75 12-Volt Air Compressor Kit* (PN: 8278)
- Replacement MSG75 Shock Absorber Kit* (PN: 8514)
- Replacement Airbag Kit* (PN: 8315)
- Replacement Air Hose* (PN: 8471)
- Replacement Switch Kit* (PN: 8318)
**Replacement parts for Mechanical Suspension Seat (PN: 6825) only.
Applications
Ideal for Kubota® BX1800, BX2300 and BX2600 Series Compact Tractors:
- BX1800 Series: BX1870, BX1870-1
- BX2300 Series: BX2370, BX2370-1, BX2380
- BX2600 Series: BX2670, BX2670-1, BX2680
