AC/Case/Cat/Ford/IH/JD/MF LED Cab/Fender/Hood Light | TL3010

SKU: 3109

$50.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

Use this replacement LED Sealed Beam Work Light for the Left-Hand or Right-Hand Upper Cab, Rear and/or Front Fender or Hood Light on Allis Chalmers® 6000-7000 Series tractors, Case® 90 Series tractors, Ford® tractors, International Harvester® 06-88 Series tractors, John Deere® 2020-9000 Series tractors, or combines, and Massey Fergsuon® tractors. Also use this LED Light in Case®, Caterpillar® and John Deere® Industrial Equipment.

Save yourself time and money with LED Lights that are IP68 rated so that no dust will get in your light and your light can be fully and continuously submerged in water, but there will be no side effects. These lights have filters that will eliminate unwanted radio and electromagnetic frequencies from external sources. Their die-cast aluminum housing/heatsink gives them long-lasting durability for a high quality and long service life. Aluminum housing is specifically designed to dissipate heat away from the internal electronics, which increases light output and improves performance. This light is designed to handle any severe environmental condition.

This LED Light features a durable polycarbonate lens, it is built to be RoHS compliant, and comes with stainless steel hardware. The color of light LEDs emit is near the color spectrum of the mid-day sun and allows the human eye to function and view objects better to improve your work environment.

Special Notes

Please Note: When used on John Deere® Tractors, the light will replace the inner front fender driving lights if the OEM light has only two connecting wires. If the inner front fender lights have a dimmer, this light will not work.

Specifications

Features:

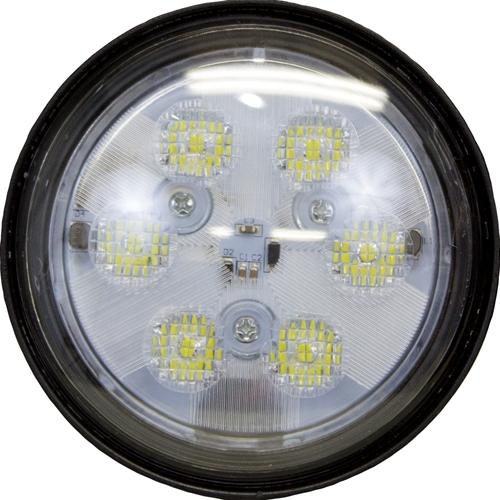

Tiger Lights TL3010 Light
4.5" diameter x 1.5" depth
36-Par replacement LED sealed beam light
Trapezoid beam pattern
1,250 effective lumens
6 LEDs
18 watts
1.5 amp draw
Input voltage: 12-Volt to 24-Volt
Wired cable for easy installation
Installation requires wire splicing
Use original mount and wiring

Replaces left-hand or right-hand light located on upper cab or rear and/or front fender on Case® 90 Series tractors and John Deere® 2040-9000 Series tractors and combines.

Replaces left-hand or right-hand rear inner fender light on Allis Chalmers® 6000-7000 Series tractors.

Replaces left-hand or right-hand fender or hood light on Ford® tractors and Massey Ferguson® tractors.

Replaces left-hand or right-hand side work light or fender light on International Harvester® 06-88 Series tractors.

Replaces front or rear upper cab or fender light on Case®, Caterpillar® and John Deere® industrial equipment.

Manufacturer's Limited Lifetime Warranty

Applications

Replaces Left-Hand or Right-Hand Fender Light on Allis Chalmers® 6000-7000 Series Tractors:

Tractors: 160, 170, 175, 180, 185, 190, 200, 210, 6040, 7000, 7010, 7020, 7040, 7045, 7060, 7080
6000 Series: 6060, 6070, 6080
7000 Series: 7030, 7050

Replaces Allis Chalmers® Part Number: 70239804

Replaces Left-Hand or Right-Hand Light Located on Upper Cab or Rear and/or Front Fender on Case® 90 Series Tractors:

Tractors: 320B, 420B, 420DB, 480B, W8E, W9, W9E, W10E
90 Series: 1190, 1290, 1390, 1490, 1690, 2090, 2290, 2390, 2590, 4490, 4690, 4890

Replaces Case® Part Numbers: A11280, D71409, D70115, 373662R1, 373662R91

Replaces Left-Hand or Right-Hand Side Work or Fender Light on International Harvester® 06-88 Series Tractors:

Tractors: 544, 656, 666, 686
06 Series: 706, 806, 1206
26 Series: 826, 1026
56 Series: 756, 856, 1256, 1456
66 Series: 766, 966, 1066, 1466, 1468, 1566, 1568
86 Series: 786, 886, 986, 1086, 1486, 1586
88 Series:3088, 3288, 3488, 3688, 5088, 5288, 5488
30 2+2 Series: 3388, 3588, 3788

Replaces International Harvester® Part Number: 131203C1

Replaces Left-Hand or Right-Hand Fender or Hood Light on Ford® Tractors:

Tractors: 233, 333, 2000, 2100, 2110, 2120, 2150, 2300, 2310, 2600, 2600N, 2600R, 2600V, 3000, 3055, 3100, 3110, 3120, 3150, 3300, 3310, 3330, 3400, 3500, 3550, 3600, 3600N, 3600NO, 3600R, 3600V, 3900, 4000, 4100, 4110, 4140, 4200, 4330, 4340, 4400, 4410, 4500, 4600, 4600NO, 4600O, 4600SU, 5000, 5100, 5200, 5340, 5600, 5700, 6600, 6600C, 6600O, 6700, 6710, 7000, 7100, 7200, 7600, 7600C, 7700, 7710, 7910, 8000, 8210, 8600, 8700, 9000, 9600, 9700
TW Series: TW5, TW10, TW15, TW20, TW25, TW30, TW35

Replaces Left-Hand or Right-Hand Light Located on Upper Cab, Rear and/or Front Fender (Stairs & Tank) or Front Hood on John Deere® Tractors, Combines, Cotton Pickers and Sprayers:

Tractors: 820, 830, 920, 930, 1120, 1520, 1640, 1830, 2010, 2040S, 2120, 2130, 3130, 3030
Generation II Series: 1530, 2030, 2630
New Generation Series: 1010, 1020, 2020
Standard-Tread Tractors: 5010, 5020, 6030
Utility Tractors: 3055, 3150, 3155, 3255
10 Series: 2510, 3010, 4000, 4010
20 Series: 2520, 3020, 3120, 4020, 4320, 4520, 4620
30 Series: 4030, 4230, 4430, 4630
40 Series: 4040, 4240, 4440, 4640, 4840
50 Series: 4050, 4250, 4450, 4650, 4850
55 Series: 4055, 4255, 4455, 4555, 4755, 4955
60 Series: 4560, 4760, 4960
30 4WD Series: 8430, 8630
40 4WD Series: 8440, 8640
50 4WD Series: 8450, 8650, 8850
60 4WD Series: 8560, 8760, 8960
70 4WD Series: 8570, 8770, 8870, 8970
1030 Series: 1030, 1130, 1630
2040 Series: 2040, 2140, 2240, 2440, 2640, 2840, 2940
2050 Series: 2150, 2350, 2550, 2750, 2950
2055 Series: 2155, 2255, 2355, 2355N, 2555, 2755, 2855N, 2955
3040 Series: 3040, 3140
5000 Series: 5200, 5300, 5400, 5500
7020 Series: 7020, 7520
9000 Series: 9100, 9200, 9300, 9400
Combines: 3300, 4400, 4420, 6600, 6602, 6620, 6622, 7700, 7720, 7721, 8820
Cotton Pickers: 9900, 9910, 9920, 9930, 9940, 9950
Sprayers: 6100, 6500, 6600, 6700

Replaces John Deere® Part Numbers: AF3892R, AT25451, RE336111, RE285628, RE561116, RE561117

Replaces Left-Hand or Right-Hand Front or Rear Cab, Rear Fender or Hood Light on Massey Ferguson® Tractors: 10, 20, 30, 31, 40, 50, 60, 70, 80, 135, 150, 165, 175, 180, 230, 240, 245, 250, 255, 270, 275, 285, 290, 298, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500, 1505, 1800, 1805, 2640, 2675, 2705, 2745, 2775, 2805, 3505, 3525, 3545

Replaces Front or Rear Upper Cab or Fender Light on Case®, Caterpillar® and John Deere® Industrial Equipment:

Case® Backhoe Loaders, Crawler Dozers and Forklifts:

Backhoe Loaders: 26, 26B, 33, 34, 265, 480C, 480D, 480E, 480E LL, 480F, 480LL, 580C, 580D, 580 SD, 580 SE, 680E, 680G, 680H, 780, 780B, 780C
Crawler Dozers: 310C, 310D, 420, 420B, 420C, 450B, 455B, 850B, 850C, 850D, 855C, 855D, 1150B, 1150C, 1150D, 1150E, 1155D, 1155E, 1450, 1450B, 1455B, 1550
Forklifts: 530, 584C, 584D, 585C, 585D, 586C, 586D

Caterpillar® Cold Planer, Compactor, Off Highway Trucks and Wheel Loaders:

Cold Planer: PR-1000
Compactor: 815B
Off Highway Trucks: 776C, 776D, 777C, 777D, 784B, 784C, 785B, 785C, 785D, 789B, 789C, 793B, 793C, 793D, 797, 797B, MT4400D AC
Wheel Loaders: 950H, 966H, 972G, 972H, 972K, 972M, 980F, 980G, 980G Series II, 980H, 980K, IT12F

John Deere® Backhoe Loaders, Crawler Dozers, Crawler Loaders, Forklifts, Log Skidders, Skid Steers, Skidder and Wheel Loaders:

Backhoe Loaders: 300B, 302A, 310, 310A, 310B, 401C, 410, 410B, 415B, 500A, 500B, 500C, 510, 510B, 515B, 610B, 700A, 710B, 710C, 760A
Crawler Dozers: 450D, 450E, 550, 550A, 550B
Crawler Loaders: 455D, 455E, 555, 555A, 555B
Forklifts: 380, 480, 480A, 480B, 480C
Log Skidders: 340D, 440, 440A, 440B, 440C, 440D, 448D, 540, 540A, 540B, 540D, 548D, 640, 740A
Skid Steers: 14, 24, 24A, 70, 125, 170, 375, 570, 575, 675, 675B, 3375
Skidder: 740
Wheel Loaders: 301A, 302, 401B, 444, 444C, 444CH, 544, 544A, 544B, 544C, 644A, 644B, 644C

Replaces Case® Part Numbers: A11280, D71409, D70115, 373662R1, 373662R91

Replaces Caterpillar® Part Numbers: 7T-1371, 7G-9319, 6N-7987

Replaces John Deere® Part Numbers: AF3892R, AT25451
