Uni Pro™ - KM 1054 Seat & Mechanical Suspension
$974.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
The Uni Pro™ - KM 1054 Seat & Suspension is a top-of-the-line seat and heavy-duty mechanical suspension assembly that offers a boost in vibration reduction for a more comfortable ride in even the most demanding conditions.
Special Notes
Please Note: Yellow Vinyl Seat (PN: 8722) only works in John Deere® Tractor or Lawn Mower models noted in Applications tab. Black/Gray Fabric (PN: 8531) and Black Vinyl (PN: 8922) Seats only work in the Construction models.
In some applications if you are using the Yellow Vinyl Seat (PN: 8722), you will need to remove the attached riser pedestal if not needed. Once pedestal is removed, the original mounting plate can be used with standard 10.25" mounting pattern.
In some applications if you are using the Yellow Vinyl Seat (PN: 8722), you will need to remove the attached riser pedestal if not needed. Once pedestal is removed, the original mounting plate can be used with standard 10.25" mounting pattern.
Available Options
10 Total Upsell Products
Specifications
Features:
Available Color Options:
Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):
- Grammer MSG85/721 Seat
- Durable fabric or vinyl covering
- Heavy-duty mechanical suspension
- Contoured foam cushions to ensure operator comfort
- Reclining backrest with tapered back support
- Adjustable mechanical lumbar support to help prevent lower back pain
- Retractable seat belt for added safety (standard on PN: 8531 & 8722)
- 4" suspension travel
- 3.9" suspension stroke in 0.6" increments
- Flip handle weight adjustment
- Weight indicator
- 110 - 285 lb weight adjustment
- Three-position height adjustment
- 3" height adjustment
- Dual shock absorbers for individual comfort
- Slide rails provide 8" fore/aft adjustment
Available Color Options:

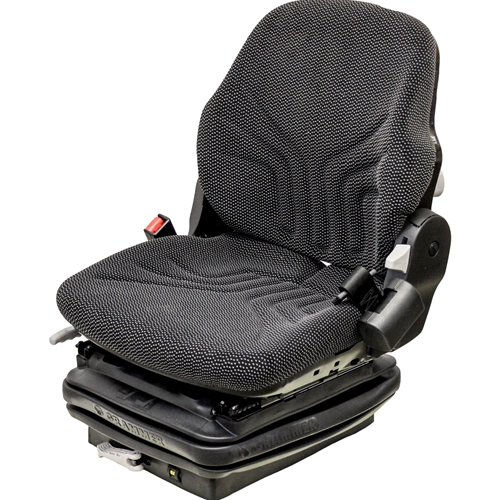

- Black/Gray Matrix Fabric (PN: 8531)
- Black Vinyl (PN: 8922)
- Yellow Vinyl (PN: 8722)
- Backrest Extension Kit in Black/Gray Matrix Fabric (PN: 8365)
- Backrest Extension Install Kit (PN: 8573)
- Fold-Up Armrests: Left-Hand (PN: 8538) or Right-Hand (PN: 8539)
- Fold-Up & Adjustable Armrests: Left-Hand (PN: 7966) or Right-Hand (PN: 7967)
- Retractable Seat Belt Kit (PN: 7996)
- Orange Retractable Seat Belt Kit with Switch (PN: 8718)
- Swivel Kit (PN: 5007)
- Operator Presence Switch (PN: 7961)
- KM Grammer Seat/Backrest Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8065)
- KM Grammer Backrest Extension Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8066)
- MSG85/95 Lateral Isolator Kit* (PN: 8400)
Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):
- Replacement Backrest Cushion in Black/Gray Matrix Fabric (PN: 7995)
- Replacement Backrest Cushion in Black Vinyl (PN: 8449)
- Replacement Backrest Cushion in Yellow Vinyl (PN: 8655)
- Replacement Seat Cushion in Black/Gray Matrix Fabric (PN: 7994)
- Replacement Seat Cushion with Cutout in Black Vinyl (PN: 8447)
- Replacement Seat Cushion in Black Vinyl (PN: 8011)
- Replacement Seat Cushion in Yellow Vinyl (PN: 8654)
- Replacement LH or RH Backrest Adjustment Handle Kit (PN: 8448)
- Replacement MSG85 Fore/Aft Isolator Kit (PN: 8717)
- Replacement Seat Belt Cover Kit (PN: 8372)
- Replacement Slide Rail Kit (PN: 6048)
Applications
Multiple Applications for Agriculture, Construction, Forklift and Tractor Equipment. Ideal for Case® Wheel Loader, Hamm® Rollers, and John Deere® Backhoe Loader and Wheel Loaders:
May Fit Some Models - Check Bolt Pattern to Ensure Proper Fit (Refer to Technical Drawings in More Info Tab)
Case® Wheel Loader: 521E
Hamm® Rollers: 3205, 3205P, 3307, 3307P, 3412, H5I, H11IX
John Deere® Backhoe Loader and Wheel Loaders:
Replaces John Deere® Wheel Loader Part Numbers: AT159385, AT160119, AT403998, AT403999, AT102999, AT103000, AT174642, AT174643, LW12220472, LW12220563, LW12220470, LW12215467, LW12210472090
Yellow Vinyl Seat ONLY Replaces John Deere® Part Number: RE251273 in John Deere® 5E and 5M Series Tractors (Must Remove Aftermarket Pedestal and Re-Use Original Pedestal for Some Applications):
Yellow Vinyl Seat ONLY Replaces John Deere® Part Number: TCA17395 or TCA23573 in John Deere® Lawn Mowers (Must Remove Aftermarket Pedestal and Re-Use Original Pedestal for Some Applications):
May Fit Some Models - Check Bolt Pattern to Ensure Proper Fit (Refer to Technical Drawings in More Info Tab)
Case® Wheel Loader: 521E
Hamm® Rollers: 3205, 3205P, 3307, 3307P, 3412, H5I, H11IX
John Deere® Backhoe Loader and Wheel Loaders:
- Backhoe Loader: 210LJ
- Wheel Loaders: 204K, 204L, 244J, 244K, 244KII, 304J, 304K, 304L, 324J, 324K, 344G, 344J, 344K, 344L, 444G, 544E, 544E LL, 544E TC, 544G, 544G LL, 544G TC, 624E, 624G, 644E, 644EZ, 644G
Replaces John Deere® Wheel Loader Part Numbers: AT159385, AT160119, AT403998, AT403999, AT102999, AT103000, AT174642, AT174643, LW12220472, LW12220563, LW12220470, LW12215467, LW12210472090
Yellow Vinyl Seat ONLY Replaces John Deere® Part Number: RE251273 in John Deere® 5E and 5M Series Tractors (Must Remove Aftermarket Pedestal and Re-Use Original Pedestal for Some Applications):
- 5E Series: 5085E, 5090E, 5100E
- 5M Series: 5065M, 5075M, 5085M, 5090M, 5095M, 5100M, 5105M, 5115M, 5120M
- 6D Series: 6100D, 6105D, 6110D, 6115D, 6125D, 6130D, 6140D
- 6E Series: 6100E, 6105E, 6110E, 6115E, 6120E, 6125E, 6130E
Yellow Vinyl Seat ONLY Replaces John Deere® Part Number: TCA17395 or TCA23573 in John Deere® Lawn Mowers (Must Remove Aftermarket Pedestal and Re-Use Original Pedestal for Some Applications):
- Replaces TCA17395: 7500, 7700, 8500, 8700, 8800
- Replaces TCA23573: 6080A, 6500A, 6700A, 7200A, 7400A, 7500A, 7700A, 8000A, 8700A, 8800A
