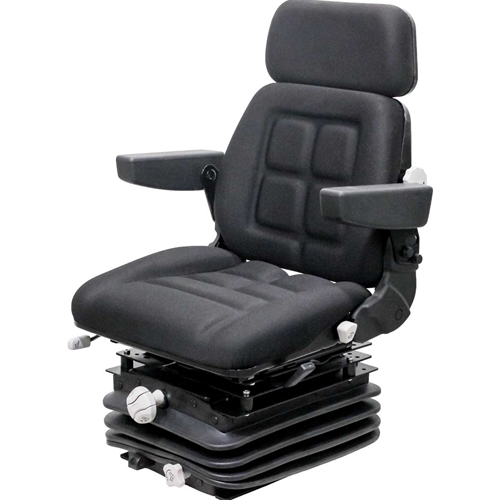

International Harvester 86-88 Series KM 1004 Seat & Mechanical Suspension - Black Fabric
$994.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
Complete replacement seat and suspension for International Harvester® 86-88 Series tractors.
The Uni Pro™ - KM 1004 Seat & Suspension is a seat and mechanical suspension assembly that fits multiple applications.
The Uni Pro™ - KM 1004 Seat & Suspension is a seat and mechanical suspension assembly that fits multiple applications.
Special Notes
Please Note: The 1004 Seat does not allow for an Operator Presence Switch.
This will not fit the 686. Order part number 6573 instead.
This will not fit the 686. Order part number 6573 instead.
Available Options
4 Total Upsell Products
Specifications
Features:
- Durable black fabric covering
- Removable headrest
- Vacuum formed cushions add comfort and durability
- Seat cushion width of 17.75"
- Seat index point of 1.38"
- Extendable and foldable backrest with angle adjustment
- Mechanical adjustable lumbar support
- Fold-up armrests
- Seat belt fixation points
- Swivel
- Adjustable slide rails with 8.25" of travel
- Suspension travel of 4"
- Manual weight adjustment of 286 lbs
- 2.75" stroke reducer
- Durable suspension cover to keep components free of dirt and dust
Seat & Suspension Kit (PN: 6581) Includes:
- Uni Pro™ - KM 1004 Seat & Mechanical Suspension
- Swivel
- Pedestal
- Install Hardware
- Installation Instructions
Available Options:
- Lap Belt Kit (PN: 7911)
- Retractable Seat Belt Kit - 45.5" Long (PN: 7925)
- Retractable Seat Belt Kit with Switch - 47" Long (PN: 8443)
- Orange Retractable Seat Belt Kit - 51.5" Long (PN: 8590)
- Replacement Armrests (PN: 8644)
Applications
International Harvester® 86-88 Series Tractors: 786, 886, 986, 1086, 1486, 1586, 3288, 3388, 3488, 3588, 3688, 3788, 5088, 5288, 5488, Hydro 186
