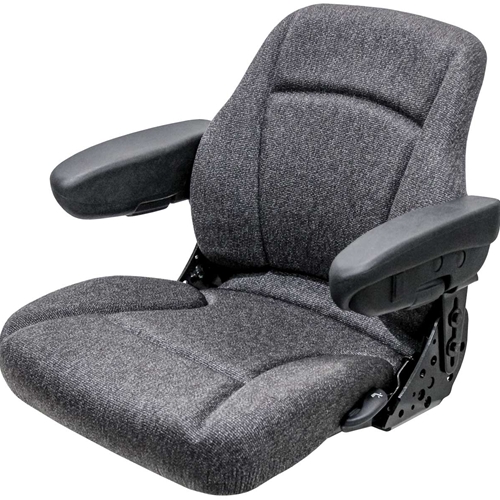

Case IH 71-89/9100-9300 KM 1001 Seat Assembly with Original Swivel
$899.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
The KM 1001 Replacement Seat Assembly is the seat top replacement for the original seat in Case IH® 71-89 Series Magnum and Steiger® 9100-9300 Series tractors with original air suspension and with original swivel.
Special Notes
Please Note: Use with original air suspension with swivel.
Operator presence switch comes standard.
Operator presence switch comes standard.
Available Options
3 Total Upsell Products
Specifications
Features:
- Durable charcoal gray Tuff-tex fabric covering
- Reclining backrest
- Adjustable lumbar support
- Padded tilt-up armrests with angle adjustment
Seat & Suspension Kit (PN: 6773) Includes:
- KM 1001 Seat Assembly
- Seat Adapter Plate
- Install Hardware
- Installation Instructions
Available Options:
- Swivel Kit (PN: 5003)
- 2" Retractable Seat Belt Kit (PN: 7977)
- 3" Retractable Seat Belt (PN: 8417)
Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):
- Replacement LH Armrest Kit (PN: 8140)
- Replacement RH Armrest Kit (PN: 8141)
- Replacement Backrest Cushion Kit in Charcoal Gray Fabric (PN: 8139)
- Replacement Seat Cushion Kit in Charcoal Gray Fabric (PN: 8138)
- Replacement Backrest Cushion Kit in Black Vinyl (PN: 8163)
- Replacement Seat Cushion Kit in Black Vinyl (PN: 8162)
Applications
Case IH® 71-89 Series Magnum and Steiger® 9100-9300 Series Tractors with Original Air Suspension and with Swivel:
- 71 Series Magnum: 7110, 7120, 7130, 7140, 7150
- 72 Series Magnum: 7210, 7220, 7230, 7240, 7250
- 89 Series Magnum: 8910, 8920, 8930, 8940, 8950
- Steiger® 9100 Series: 9110, 9130, 9150, 9170, 9180, 9190
- Steiger® 9200 Series: 9210, 9230, 9240, 9250, 9260, 9270, 9280
- Steiger® 9300 Series: 9310, 9330, 9350, 9370, 9380, 9390
