Ford-New Holland 70 Genesis KM 1003 Seat & Air Suspension

SKU: 6849

$1,392.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

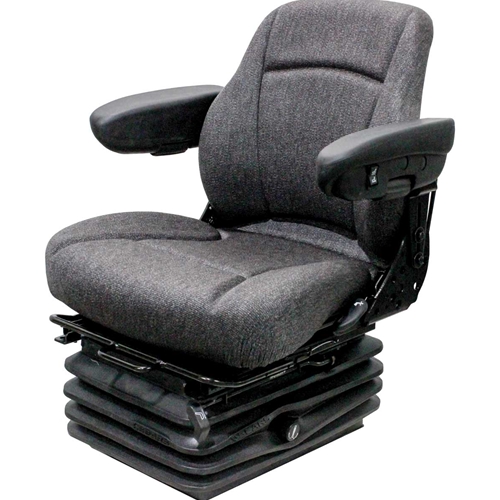

Complete replacement seat and suspension for Ford®-New Holland® 70 Genesis Row Crop Series and 80 4WD Series tractors.

The Uni Pro™ - KM 1003 Seat & Suspension is a deluxe seat/suspension assembly. The variable shock air suspension has a self-contained 12-volt compressor and provides a smoother, more comfortable ride.

Special Notes

Please Note: Swivel is not included. If a swivel is wanted please order PN: 5003. Original seat is a Sears seat. Grammer seat is optional.

Operator presence switch comes standard.

Available Options

KM Sears 1000/1003 Swivel

SKU: 5003

$263.00

KM 2" Sears Retractable Seat Belt Kit

SKU: 7977

$148.00

KM 3" Retractable Seat Belt

SKU: 8417

$199.00

Specifications

Features:

Durable charcoal gray Tuff-tex fabric covering
Reclining backrest
Adjustable lumbar support
Fore and aft isolator which can be disabled
Height and weight adjustment
Padded tilt-up armrests with angle adjustment
Adjustable slide rails with 5" of travel
Durable suspension cover to keep components free of dirt and dust

Seat & Suspension Kit (PN: 6849) Includes:

Uni Pro™ - KM 1003 Seat & Air Suspension
Install Hardware
Installation Instructions

Available Options:

Swivel Kit (PN: 5003)
2" Retractable Seat Belt Kit (PN: 7977)
3" Retractable Seat Belt Kit (PN: 8417)

Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):

Replacement Air Switch Kit & Skirt Clips (PN: 8705)
Replacement Air Switch Kit (PN: 7980)
Replacement 12-Volt Air Suspension (PN: 8130)
Replacement 12-Volt Compressor Kit (PN: 8119 - Requires wiring harness PN: 8120)
Replacement 12-Volt Compressor Wiring Harness Kit (PN: 8120 - Must order with PN: 8119)
Replacement Airbag Kit (PN: 8145)
Replacement Air Hose Kit (PN: 8367)
Replacement Shock Absorber Kit (PN: 8511)
Replacement Fore/Aft Isolator Knob (PN: 8368)
Replacement Fore/Aft Isolator Latch Assembly (PN: 8252)
Replacement Seat Top Assembly in Charcoal Gray Fabric (PN: 8792)
Replacement NEW STYLE Backrest Cushion in Charcoal Gray Fabric (PN: 8540)
Replacement NEW STYLE Seat Cushion in Charcoal Gray Fabric (PN: 8541)
Replacement OLD STYLE Backrest Cushion in Charcoal Gray Fabric (PN: 8139)
Replacement OLD STYLE Seat Cushion in Charcoal Gray Fabric (PN: 8138)
Replacement OLD STYLE Backrest Cushion in Black Vinyl (PN: 8163)
Replacement OLD STYLE Seat Cushion in Black Vinyl (PN: 8162)
Replacement LH Armrest Kit (PN: 8140)
Replacement RH Armrest Kit (PN: 8141)
Replacement Suspension Roller Kit (PN: 8427)
Replacement Double-Locking Slide Rails (PN: 8279)

Applications

Ford®-New Holland® 70 Genesis Series Row Crop Tractors: 8670, 8770, 8870, 8970

Ford®-New Holland® 80 4WD Series Tractors: 9280, 9480, 9680, 9880, 9282, 9482, 9682, 9882, 9184, 9384, 9684, 9884
