Ford-New Holland 70 Genesis Series KM 1060 Seat & Air Suspension
$1,539.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
Complete replacement seat and suspension for Ford®-New Holland® 70 Genesis Row Crop Series and 80 4WD Series tractors.

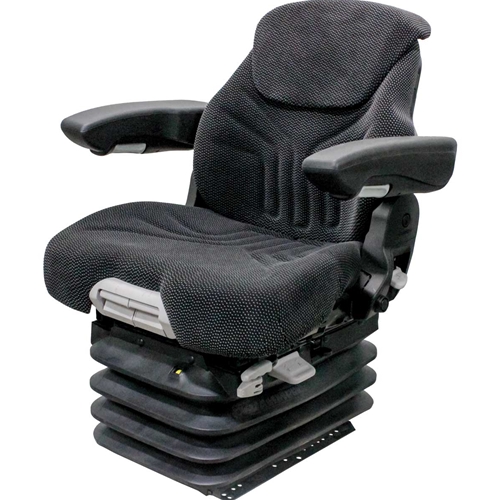

The Uni Pro™ - KM 1060 Seat & Suspension is a deluxe seat and air suspension assembly that replaces the original suspension seat and provides a smoother, more comfortable ride. The air suspension has a self-contained 12-volt compressor which wires directly to the tractor's electrical system.
Videos:
The Uni Pro™ - KM 1060 Seat & Suspension is a deluxe seat and air suspension assembly that replaces the original suspension seat and provides a smoother, more comfortable ride. The air suspension has a self-contained 12-volt compressor which wires directly to the tractor's electrical system.
Videos:
Special Notes
Please Note: Swivel not included. If a swivel is wanted, please order PN: 5007. Operator presence switch comes standard. Original seat is a Sears seat. Grammer seat is optional.
Available Options
3 Total Upsell Products
Specifications
Features:
- Durable black/gray fabric covering
- Plush and spacious cushions for operator comfort
- Reclining backrest with tapered back support
- Backrest extension for extra backrest height
- Adjustable mechanical lumbar support
- Seat cushion depth adjustment
- Seat cushion angle adjustment
- Adjustable fold-up armrests
- Fore/aft isolator with 8.25" of travel absorbs jarring for extra comfort
- Height adjustment of 3"
- Adjustable slide rails with 4" of travel
- Shock absorber
- Operator presence switch
- Durable suspension cover to keep components free of dirt and dust
Seat & Suspension Kit (PN: 6847) Includes:
- Grammer MSG95/741 Seat
- Pedestal
- Install Hardware
- Installation Instructions
Available Options:
- Swivel Kit (PN: 5007)
- Retractable Seat Belt Kit (PN: 7996)
- MSG85/95 Lateral Isolator Kit* (PN: 8400)
*The MSG85/95 Lateral Isolator Kit will only work if a Grammer 700 Series seat top is being used.
Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):
- Replacement Backrest Extension Kit in Black/Gray Matrix Fabric (PN: 8365)
- Replacement Backrest Extension Install Kit (PN: 8573)
- Replacement Fold-Up Armrests: Left-Hand (PN: 8538) or Right-Hand (PN: 8539)
- Replacement Fold-Up & Adjustable Armrests: Left-Hand (PN: 7966) or Right-Hand (PN: 7967)
- Replacement 12-Volt Air Compressor Kit (PN: 7993)
- Replacement Airbag Kit (PN: 8020)
- Replacement MSG95A/AL & G Air Hose Kit (PN: 8719)
- Replacement MSG95 Fore/Aft Isolator Handle (PN: 8572)
- Replacement MSG95 Fore/Aft Isolator Kit (PN: 8210)
- Replacement MSG95 Fore/Aft Isolator Lock Kit (PN: 8513)
- Replacement MSG95 Shock Kit (PN: 8294)
- Replacement Suspension Switch (PN: 8023)
- Replacement MSG95 Wear Parts Kit (PN: 8716)
- Replacement Operator Presence Switch (PN: 7961)
- Replacement Seat Cushion in Black/Gray Matrix Fabric** (PN: 8251)
- Replacement Backrest Cushion in Black/Gray Matrix Fabric** (PN: 7995)
- Replacement LH or RH Backrest Adjustment Handle Kit (PN: 8448)
- Replacement Seat Belt Cover Kit (PN: 8372)
- Replacement Seat Depth/Tilt Kit (PN: 8594)
- Replacement Seat Depth Guide Kit (PN: 8724)
- Replacement Slide Rail Kit (PN: 6048)
- Replacement Swing Arm Kit (PN: 8131)
Applications
Ford®-New Holland® 70 Genesis Series Row Crop Tractors: 8670, 8770, 8870, 8970
Ford®-New Holland® 80 4WD Series Tractors: 9280, 9480, 9680, 9880, 9282, 9482, 9682, 9882, 9184, 9384, 9684, 9884
Ford®-New Holland® 80 4WD Series Tractors: 9280, 9480, 9680, 9880, 9282, 9482, 9682, 9882, 9184, 9384, 9684, 9884
