KM 1201 Seat & 24V Air Suspension | Replacement Seat

Options:

SKU: 7921

$1,599.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

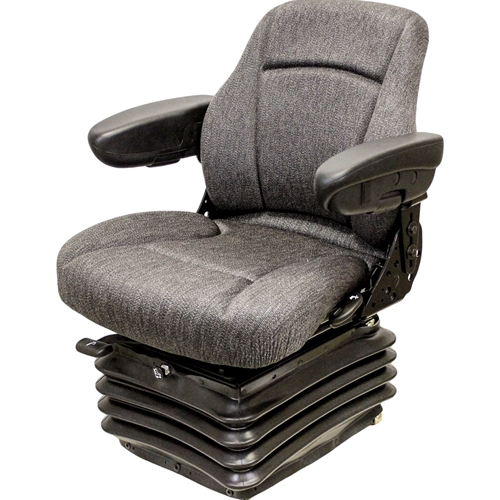

The Uni Pro™ - KM 1201 Seat & Suspension is ideal in applications where a superior ride is needed. The variable shock air suspension has a self-contained 24-Volt compressor and provides a smoother, more comfortable ride.

Special Notes

Please Note: The Uni Pro™ - KM 1201 Seat & Suspension only fits if the original seat was 24-Volt.

The Sears swivel (PN: 5003) will not work with this seat.

Available Options

KM 2" Sears Retractable Seat Belt Kit

SKU: 7977

$148.00

KM 3" Retractable Seat Belt

SKU: 8417

$199.00

Specifications

Applications

More Info

Maintenance

Reviews

Features:

Durable fabric or vinyl covering
Plush cushions to ensure operator comfort
Reclining backrest with tapered back support
Adjustable mechanical lumbar support to help prevent lower back pain
Adjustable fold-up armrests
Seat cushion width of 21.5"
Seat back height of 19"
Heavy duty side rails provide fore/alt adjustment
24-Volt air suspension with 3.27" suspension stroke to reduce the impact of extreme shocks to the body
99 - 320 lb suspension weight adjustment

Durable suspension cover to keep components free of dirt and dust

Available Color Options:

Charcoal Gray Fabric (PN: 7921)
Black Vinyl (PN: 8542)

Available Options:

2" Retractable Seat Belt Kit (PN: 7977)
3" Retractable Seat Belt Kit (PN: 8417)

Available Maintenance Item:

Replacement LH Armrest Kit (PN: 8140)
Replacement RH Armrest Kit (PN: 8141)
Replacement 24-Volt Air Suspension Kit* (PN: 8143)
Replacement Universal Construction Mounting Plate** (PN: 6090)
Replacement 24-Volt Compressor Kit (PN: 8089)
Replacement Air Switch Kit & Skirt Clips (PN: 8705)
Replacement Air Switch Kit (PN: 7980)

*Mounting pattern on top of the suspension is 14.625" x 9" (W x L).
**Used for adapting replacement air suspension (PN: 8143) to seat using a 15" wide mounting pattern.

Multiple Applications for Construction Equipment. Ideal for John Deere® Motor Graders, Tool Carriers & Log Skidders and Wheel Loaders:

May Fit Some Models - Check Bolt Pattern to Ensure Proper Fit (W x L - 11" x 9.25")

John Deere® Motor Graders, Tool Carriers & Log Skidders and Wheel Loaders:

Motor Graders: 670C, 670CH, 672CH (C-Series II Graders Serial Number 582130 and Above), 670D, 672D, 770C, 770CH, 772CH (C-Series II Graders Serial Number 582130 and Above), 770D, 772D, 870D, 872D
Tool Carriers & Log Skidders: TC44H, 444H LL, TC54H, 544H LL, TC62H, 624H LL
Wheel Loaders: 444H, 444J, 544H, 544J, 624, 624H, 644H, 644J, 724J, 744H, 744J, 824J
