Caterpillar Seat & 24V Air Suspension | KAB Seat

SKU: 6864

$2,116.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

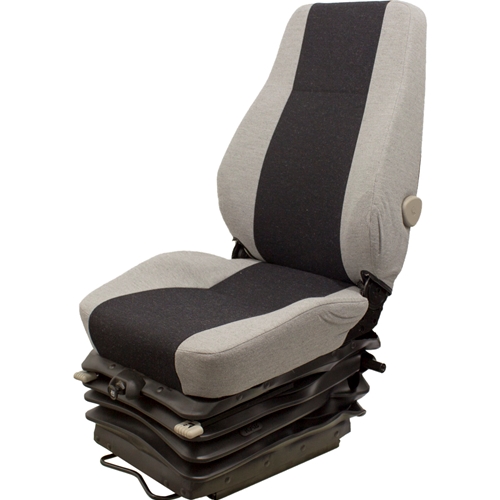

Use the Caterpillar Air Suspension Kit featuring the Uni Pro™ - KM 1030 Seat & Suspension as a high-back air suspension seat which is designed to fit Caterpillar® Equipment that require a 15" mounting pattern to add maximum comfort to keep you moving forward on every type of rough terrain thrown your way.

Special Notes

Please Note: Retain wire harness connector from OEM seat.

Optional Armrest Kit (PN: 8144) is available, but sold separately.

Available Options

KM KAB Seat Armrest Kit

SKU: 8144

$199.00

KM 1020/1023/ 1024/1027/1030 Headrest...

SKU: 8434

$96.00

KM KAB 2" Retractable Seat Belt Kit

SKU: 8111

$132.00

Specifications

Features:

Durable Multi-Gray Fabric covering
Air suspension with integrated 24-Volt integral compressor
Backrest angle adjustment for individual fit and comfort
5-position lumbar support to help prevent lower back pain
110 - 330 lb weight adjustment
2.5" height and tilt adjustment
5" vertical suspension stroke
Adjustable slide rails with 8" of travel in 0.4" increments
Durable suspension cover to keep components free of dirt and dust
CAT adapter plate and mounting hardware included for easy installation

Vibration performance meets ISO 7096 specifications. Seat belt conforms to ISO 6683, SAE J386 and ISO 3776 (anchorage strength of 3372 lbs). Seat meets EM1, EM3, EM4, EM5, EM6 and EM8 specifications.

Caterpillar Seat & Air Suspension (PN: 6864) Includes:

KAB 554 Seat
KAB CAT Adapter Plate
Bolt Bag

Available Options:

Headrest Kit in Black Fabric (PN: 8434)
Armrest Kit (PN: 8144)
Retractable Seat Belt Kit (PN: 8111)

Available Maintenance Items:

Replacement Air Switch Kit (PN: 8472)

Applications

Ideal for Caterpillar® Articulated Dump Trucks, Excavators, Integrated Tool Carriers, Landfill Compactors, Large Wheel Loaders, Medium Wheel Loaders, Motor Graders, Rigid Dump Trucks, Scrapers, Track Dozers, Track Loaders and Wheel Loaders:

Articulated Dump Trucks Retain Wire Harness Connector from OEM Seat): 725, 730, 735, 740, D350, D350D, D350E, D400, D400D, D400E

Replaces Caterpillar® Articulated Dump Truck Part Numbers: 149-0092, 200-3173, 230-3393, 279-2300, 279-2301

Excavators (Retain Wire Harness Connector from OE Seat): 312L, 320L, 322L, 325L, 330L

Replaces Caterpillar® Excavator Part Numbers: 4l-7052, 5l-3649

Integrated Tool Carriers (Retain Wire Harness Connector from OE Seat. 219-8094 has RH Seat Mounted Controls. Bracket Necessary to Make Fit. OE Seat May Have Seat Heater.): IT14G, IT18B, IT18F, IT24F, IT28B, IT28F, IT28G, IT38F, IT38G, IT62G, IT62H

Replaces Caterpillar® Integrated Tool Carrier Part Numbers: 219-8094, 219-8096, 248-6194

Landfill Compactors (Retain Wire Harness Connector from OE Seat. 191-2996 Seat has LH & RH Controls Connected to Seat. To Retrofit would Require Fab Work.): 815F, 816F, 824C, 825G, 825H, 826G, 826H, 834B, 836, 836G, 836H

Replaces Caterpillar® Landfill Compactor Part Numbers: 191-2996, 200-3174, 219-8091, 219-8092, 219-8096

Large Wheel Loaders: 988B, 988F, 988G, 988H, 990, 990H, 992C, 992D, 992G, 994F, 994G

Replaces Caterpillar® Large Wheel Loader Part Numbers: 200-3174, 219-8090, 219-8091

Medium Wheel Loaders (Retain Wire Harness Connector from OE Seat. 191-2996 and 248-6193 Seats have LH & RH Controls Connected. To Retrofit would Require Fab Work. OE Seats May have Seat Heaters): 914G, 924, 924F, 924G, 928F, 928G, 928H, 930G, 936E, 936F, 938F, 938G, 938H, 950E, 950F, 950G, 950H, 962G, 962H, 966C, 966D, 966F, 966E, 966G, 966H, 970F, 972G, 972H, 980C, 980F, 980G, 980H

Replaces Caterpillar® Medium Wheel Loader Part Numbers: 191-2996, 200-3174, 219-8092, 219-8094, 219-8095, 219-8096, 248-6193, 248-6194

Motor Graders (Retain Wire Harness Connector from OEM Seat: 12G, 12H, 14G, 14H, 14M, 16G, 16H, 16M, 24H, 24M, 120G, 120H, 120M, 135H, 140G, 140H, 140M, 143H, 160H, 160M, 163H

Replaces Caterpillar® Motor Grader Part Numbers: 200-3814, 219-8096, 238-6683, 241-1077, 243-6740, 302-8813, 302-8814, 6G3520, 8X2352, 8Y3911

Rigid Dump Trucks - Off-Highway (Retain Wire Harness Connector from OE Seat. OE Seat May Have 3-Point Seat Belt.): 769D, 770, 771D, 772, 773D, 773E, 773F, 775D, 775E, 775F, 776C, 776D, 777C, 777D, 777F, 784B, 784C, 785B, 785C, 789B, 789C, 793B, 793C, 793D, 797, 797B

Replaces Caterpillar® Rigid Dump Truck Part Number: 180-7310, 219-8093, 200-3172, 224-2677, 228-3351, 240-2803, 240-8716, 252-9713

Scrapers (Retain Wire Harness Connector from OE Seat. 219-8094 has RH Seat Mounted Controls. Bracket Necessary to Make Fit. OE Seay May have Seat Heater.): 613G, 615G, 621B, 621E, 621G, 623B, 623E, 623G, 627B, 627E, 627G, 631C, 631D, 631E, 631G, 633G, 637C, 637D, 637E, 637G, 651E, 651G, 657E, 657G

Replaces Caterpillar® Scraper Part Numbers: 284-5895, 284-5903, 300-5533

Track Dozers (Retain Wire Harness Connector from OEM Seat): D3G, D4G, D5G, D5M, D5N, D6H, D6M, D6N, D6R, D7H, D7R, D8N, D8R, D8T, D9N, D9R, D9T, D10N, D10R, D10T, D11N, D11R, D11T

Replaces Caterpillar® Track Dozer Part Numbers: 159-2950, 159-2951, 160-7186, 200-3174, 220-8634, 261-7484, 261-7533

Track Loaders (Retain Wire Harness Connector from OEM Seat. OEM Seat Does Not Have Arms and Has a Lateral Isolator.): 939C, 953C, 963C, 973C

Replaces Caterpillar® Track Loader Part Numbers: 227-9231, 227-9232

Wheel Loaders (Retain Wire Harness Connector from OE Seat. 191-2996 Seat has LH & RH Controls Connected. To Retrofit would Require Fab Work.): 814F, 824G, 824H, 834G, 834H, 844, 844H, 854G, 854K

Replaces Caterpillar® Wheel Loader Part Numbers: 191-2996, 200-3174, 219-8090, 219-8092, 219-8095, 219-8096
