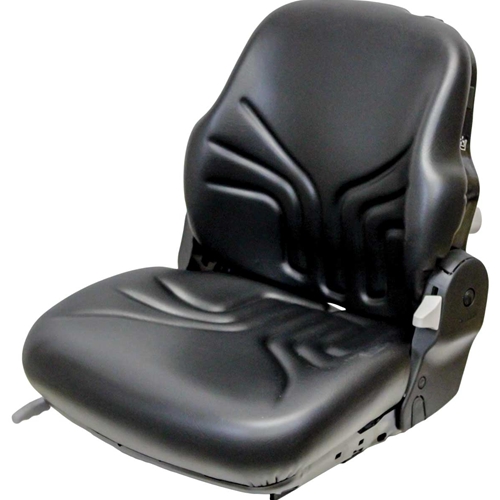

Kubota L3030-L5040-M5-M9960 Series KM 731 Seat Assembly Kits
$839.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
Use the Uni Pro™ - KM 731 Seat Assembly as a comfortable, quality made replacement seat in your Kubota® L3030-L5040 or M5-M9960 Series compact tractor to add comfort that doesn't quit while you’re busy at work.
Videos:
Videos:
Available Options
10 Total Upsell Products
Specifications
Features:
- Durable fabric or vinyl covering
- Contoured foam cushions for maximum operator comfort
- Tapered back support with adjustable backrest for added comfort and versatility
- Backrest extension for extra backrest height (standard on PN: 6874)
- Seat cushion depth/tilt and angle adjustment for custom fit (standard on PN: 6874)
- Adjustable mechanical lumbar support with multiple setting to help prevent lower back pain (standard on PN: 6875)
- Fold-up armrests allow for easy access to the seat (standard on PN: 6874; optional on PN: 6875)
- Accepts operator presence switch
- Slide rails provide fore/aft adjustment ensuring operator comfort
- Seat bracket and mounting hardware included for easy installation
- Grammer 731 Seat Top
- Seat Bracket
- Operator Presence Switch
- Bolt Bag
- Black/Gray Matrix Fabric (PN: 6874)
- Black Vinyl (PN: 6875)
- Fold-Up Armrests: Left-Hand (PN: 8538) or Right-Hand (PN: 8539)
- Fold-Up & Adjustable Armrests: Left-Hand (PN: 7966) or Right-Hand (PN: 7967)
- Backrest Extension in Black/Gray Matrix Fabric (PN: 8365)
- Backrest Extension Install Kit (PN: 8573)
- Lumbar Support Kit (PN: 8455)
- Retractable Seat Belt Kit (PN: 7996)
- Orange Retractable Seat Belt Kit with Switch (PN: 8718)
- Swivel Kit (PN: 5007)
- Operator Presence Switch Kit (PN: 7961)
- KM Grammer Seat/Backrest Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8065)
- KM Grammer Backrest Extension Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8066)
- Replacement Backrest Cushion in Black/Gray Matrix Fabric (PN: 7995)
- Replacement Seat Cushion in Black/Gray Matrix Fabric (PN: 8510)
- Replacement Seat Cushion in Black Vinyl (PN: 8709)
- Replacement LH or RH Backrest Adjustment Handle Kit (PN: 8448)
- Replacement Seat Belt Cover Kit (PN: 8372)
- Replacement Seat Depth/Tilt Kit (PN: 8594)
- Replacement Seat Depth Guide Kit (PN: 8724)
- Replacement Slide Rail Kit (PN: 6048)
Applications
Kubota® L3030-L5040 and M5-M9960 Series Compact Tractors:
- L3030 Series: L3130DT/GST/HST, L3130F, L3430DT/GST/HST(C), L3830DT/GST/HST, L3830F
- L4030 Series: L4330DT/GST/HST(C), L4630DT/GST(C)/HST
- L5030 Series: L5030GST/HST(C)
- L3040 Series: L3240HSTC, L3240HSTC-3, L3540HSTC, L3540HSTC-3, L3940HSTC, L3940HSTC-3
- L4040 Series: L4240HST-3, L4240HSTC, L4240HSTC-3, L4740HSTC, L4740HSTC-3
- L5040 Series: L5240HSTC, L5240HSTC-3, L5740HSTC, L5740HSTC-3
- M5 Series: M5-091HD, M5-091HD12, M5-091HF, M5-111HD, M5-111HD12, M5-111HF
- M5040 Series: M5040DT, M5040DT-1, M5040F, M5040F-1, M5040HD, M5040HD-1
- M5140 Series: M5140DT, M5140F, M5140HD
- M6040 Series: M6040DT, M6040DT-1, M6040F, M6040F-1, M6040HD, M6040HD-1
- M7040 Series: M7040DT, M7040DT-1, M7040F, M7040F-1, M7040HD, M7040HD-1
- M7060 Series: M7060HD, M7060HD12
- M8540 Series: M8540DT, M8540DT-1, M8540F, M8540F-1, M8540HD, M8540HD-1, M8540HD12, M8540HD12-1
- M8560 Series: M8560HD, M8560HD12, M8560HF
- M9540 Series: M9540DT, M9540DT-1, M9540F, M9540HDL-1/HDL-1S, M9540HFL, M9540HFL-1/HFL-1S
- M9960 Series: M9960HD, M9960HD12, M9960HDL/HDLSN, M9960HF
