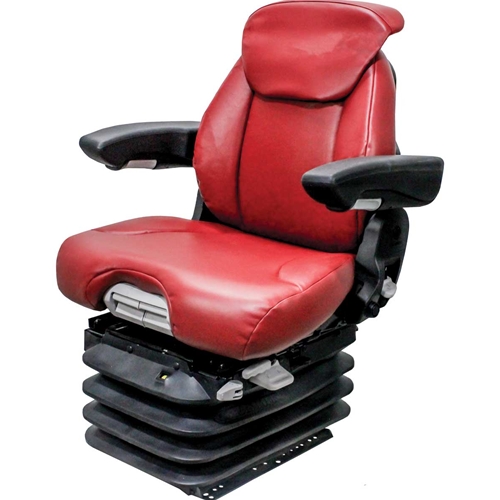

Case IH 9100/Steiger Red Seat & Air Suspension

SKU: 6907

$1,599.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

Complete plug and play replacement seat and suspension kit for Case IH® Steiger® 9100 Series and Steiger® Series tractors. Features new plug and play wiring for easy install.

The Uni Pro™ - KM 1061 Seat & Suspension is a deluxe seat and air suspension assembly that replaces the original suspension seat and provides a smoother, more comfortable ride. The air suspension has a self-contained 12-volt compressor which wires directly to the tractor’s electrical system.

Videos:

How To Remove Seat Depth/Tilt

Special Notes

Please Note: Swivel not included. If a swivel is wanted, please order PN: 5007. Comes standard with operator presence switch.

Available Options

KM Grammer Swivel

SKU: 5007

$199.00

KM Grammer Retractable Seat Belt Kit

SKU: 7996

$131.00

KM MSG85/95 Lateral Isolator Kit

SKU: 8400

$382.00

Specifications

Features:

Durable Red Leatherette Vinyl covering
Air suspension with self-contained 12-Volt compressor
Cut and sew cushions for added comfort
Reclining backrest with tapered back support
Backrest extension for extra backrest height
Adjustable mechanical lumbar support to help prevent lower back pain
Seat cushion depth adjustment
Seat cushion angle adjustment
Adjustable fold-up armrests
Fore/aft isolator with 8.25" of travel absorbs jarring for extra comfort
Height adjustment of 3"
Adjustable slide rails with 4" of travel
Suspension stroke of 3.94"
Shock absorber
Comes standard with operator presence switch
Durable suspension cover to keep components free of dirt and dust

Seat & Suspension Kit (PN: 6907) Includes:

Grammer MSG95/741 Seat
Seat Adapter Plate
Install Hardware
Installation Instructions

Available Options:

Swivel Kit (PN: 5007)
Retractable Seat Belt Kit (PN: 7996)
MSG85/95 Lateral Isolator Kit* (PN: 8400)

*The MSG85/95 Lateral Isolator Kit will only work if a Grammer 700 Series seat top is being used.

Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):

Replacement Backrest Extension in Red Leatherette Vinyl (PN: 8679)
Replacement Backrest Extension Install Kit (PN: 8573)
Replacement Fold-Up Armrests: Left-Hand (PN: 8538) or Right-Hand (PN: 8539)
Replacement Fold-Up & Adjustable Armrests: Left-Hand (PN: 7966) or Right-Hand (PN: 7967)
Replacement Seat Belt Cover Kit (PN: 8372)
Replacement Seat Depth/Tilt Kit (PN: 8594)
Replacement Seat Depth Guide Kit (PN: 8724)
Replacement Slide Rail Kit (PN: 6048)
Replacement LH or RH Backrest Adjustment Handle Kit (PN: 8448)
Replacement Operator Presence Switch (PN: 7961)
Replacement 12-Volt Air Compressor Kit (PN: 7993)
Replacement Airbag Kit (PN: 8020)
Replacement MSG95A/AL & G Air Hose Kit (PN: 8719)
Replacement MSG95 Fore/Aft Isolator Handle (PN: 8572)
Replacement MSG95 Fore/Aft Isolator Kit (PN: 8210)
Replacement MSG95 Fore/Aft Isolator Lock Kit (PN: 8513)
Replacement MSG95 Shock Kit (PN: 8294)
Replacement Suspension Switch (PN: 8023)
Replacement MSG95 Wear Parts Kit (PN: 8716)
Replacement Swing Arm Kit (PN: 8131)

Applications

Case IH® Steiger® 9100 Series Tractors with Original Grammer Seat:

Steiger® 9100 Series: 9110, 9130, 9150, 9170, 9180, 9190

Steiger® Series Tractors with Original Grammer Seat:

Lion 1000
Bearcat 1000
Bearcat III Series: PT225, ST220, ST225
Bearcat IV Series: CM225, KM225
Cougar 1000 Series: CR1225, CR1280, KR1225, KR1280
Cougar III Series: ST270, ST280
Cougar IV Series: CM250, CM280, CS280, KM280, KS280
Panther 1000 Series: CP1325, CP1360, CP1400, KP1325, KP1360, KP1400
Panther III Series: PTA297, PTA310, PTA325, ST310, ST320, ST325, ST350
Panther IV Series: CM325, CM360, CS325, CS360, KM325, KM360, KS325, KS360, SM325
Tiger III Series: ST450, ST470
Tiger IV Series: KP525
