John Deere 5E Seat & Air Susp (Open Station & Orig Grammer)

SKU: 6937

$1,294.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

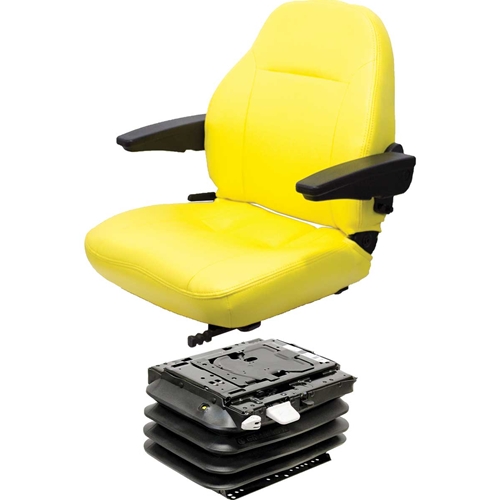

The Uni Pro™ - KM 441 Seat Assembly with the KM MSG95 Air Suspension is designed to replace the original seat and suspension in John Deere® 5E Series tractors with Open Station and Original Grammer Seat.

The KM MSG95 Air Suspension has been meticulously engineered to rigorously absorb vibrations of all types.

Available Options

KM Seat Belt Bracket Kit

SKU: 6002

$34.00

KM 47.5" Long Lap Belt

SKU: 7911

$52.00

Specifications

Uni Pro™ - KM 441 Seat Assembly Features:

Cut and sew Yellow Vinyl for a more rugged, comfortable cover
Vinyl is water-resistant
Adjustable backrest folds forwards and reclines
3-position lumbar support to help prevent lower back pain
Fold-up armrests
Durable document pouch stores owner's manual and other valuables
Adjustable slide rails from 6.5" - 13" side-to-side for universal fit

KM MSG95 Air Suspension Features:

Grammer MSG95 Air Suspension
Self-contained 12-Volt compressor
Frame width of 11.75"
Side controls
Fore/aft isolator
Suspension travel of 4"
Suspension stroke up to 7"
Manual weight adjustment
Weight indicator
110 - 285 lb weight adjustment
Shock absorber adjustments for individual comfort
Durable rubber molded suspension cover to keep components free of dirt and dust

Seat & Suspension Kit (PN: 6937) Includes:

Uni Pro™ - KM 441 Seat Assembly
KM MSG95 Air Suspension
Pedestal
Operator Presence Switch (Normally Open)
Cab Harness
Install Hardware
Installation Instructions

Available Options:

Seat Belt Bracket Kit necessary with part number: 7911 (PN: 6002)
Seat Belt Kit (PN: 7911)

Available Maintenance Items:

Replacement Armrest Kit (PN: 8025)
Replacement Operator Presence Switch - Normally Open (PN: 8665)
Replacement Adjustable Slide Rails (PN: 8453)
Replacement MSG95 Rubber Suspension Cover Kit (PN: 8704)
Replacement 12-Volt Air Compressor Kit (PN: 7993)
Replacement Airbag Kit (PN: 8020)
Replacement MSG95A/AL & G Air Hose Kit (PN: 8719)
Replacement MSG95 Fore/Aft Isolator Handle (PN: 8572)
Replacement MSG95 Fore/Aft Isolator Kit (PN: 8210)
Replacement MSG95 Fore/Aft Isolator Lock Kit (PN: 8513)
Replacement MSG95 Shock Kit (PN: 8294)
Replacement Suspension Switch (PN: 8023)
Replacement MSG95 Wear Parts Kit (PN: 8716)
Replacement Swing Arm Kit (PN: 8131)

Applications

John Deere® 5E Series Tractors (Open Station with Original Grammer Seat): 5085E Tier 4 Final, 5100E Tier 4 Final, 5090E (SN 20001 & Above), 5090EL (SN 200001 & Above)

More Info

Installation Instructions
