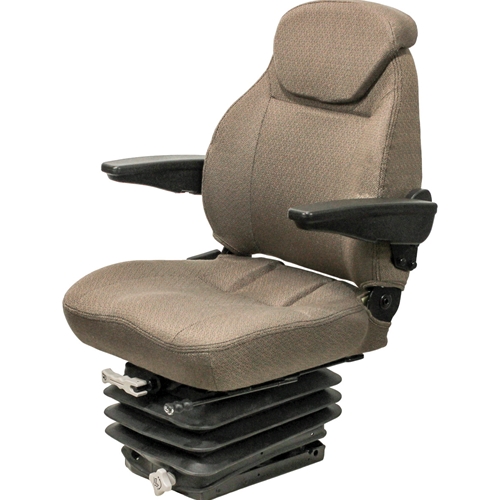

John Deere 30-55 Late KM 403 Mech Seat | Sound-Gard

SKU: 6953

$910.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

Complete seat and mechanical suspension kit for John Deere® 30-55 Late Series tractors with Sound-Gard™ cab and original deluxe mechanical suspension (11" seat well cavity).

The Uni Pro™ - KM 403 Seat & Suspension is ideal in applications where high-quality comfort is needed at a great price. It is designed to replace the original seat and hydraulic suspension in the John Deere® 30-55 Hydraulic Series. Replacement includes the Uni Pro™ - KM 440 Seat Assembly and the KM Compact Mechanical Suspension.

Special Notes

Please Note: Use this kit ONLY if your John Deere® 30-55 Late Series tractor has a Sound-Gard™ cab with an original deluxe mechanical suspension with an 11" seat well cavity.

Available Options

Flange Bolt Mount Operator Presence S...

SKU: 8665

$26.00

Specifications

Uni Pro™ - KM 440 Seat Assembly Features:

Deluxe water-resistant Brown Cordura Fabric covering
Adjustable integrated backrest folds forwards and reclines
Backrest extension for added height adjustment
3-position lumbar support to help prevent lower back pain
Fold-up armrests
Durable document pouch stores owner's manual and other valuables
Adjustable slide rails from 6.5" - 13" side-to-side for universal fit

KM Compact Mechanical Suspension Features:

Base width of 8.85"
Compact mechanical suspension with heavy-duty shock absorber
Easy to operate ride control
Height adjustment
3.13" suspension travel
Weight adjustment
9" maximum height
Durable suspension cover to keep components free of dirt and dust

Seat & Suspension Kit (PN: 6953) Includes:

Uni Pro™ - KM 440 Seat Assembly
KM Compact Mechanical Suspension
Swivel
Seat Adapter Plate
Pedestal
Install Hardware
Installation Instructions

Available Options:

Operator Presence Switch - Normally Open (PN: 8665)

Available Maintenance Items:

Replacement Armrest Kit (PN: 8025)
Replacement Adjustable Slide Rails (PN: 8453)

Applications

John Deere® 30-55 Late Series with Sound-Gard™ Cab and Original Deluxe Mechanical Suspension (11" Seat Well Cavity): 2950, 3030, 3040, 3130, 3140, 3150, 4000, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440, 4450, 4455, 4555, 4560, 4630, 4640, 4650, 4755, 4760, 4840, 4850, 4955, 4960
