International Harvester 86-88 KM 1057 Air Seat

SKU: 6975

$1,504.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

Order one of our BEST options for a complete seat and air suspension replacement kit for your International Harvester® 86-88 Series tractor.

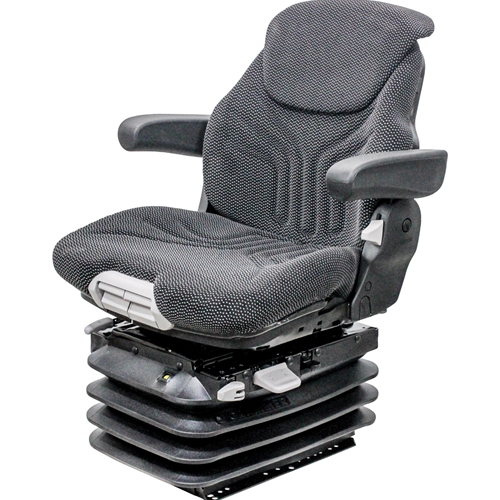

The Uni Pro™ - KM 1057 Seat & Suspension is a deluxe seat and air suspension assembly kit that replaces the original suspension seat to provide a smoother, more comfortable ride. The air suspension features a self-contained 12-volt compressor and has been meticulously engineered to rigorously absorb vibrations of all types.

Videos:

How To Remove Seat Depth/Tilt

Special Notes

Please Note: Swivel not included. If a swivel is wanted, please order PN: 5007.

Available Options

KM Grammer Swivel

SKU: 5007

$199.00

KM 731/1057 Lumbar Support Kit

SKU: 8455

$70.00

KM Grammer Retractable Seat Belt Kit

SKU: 7996

$131.00

KM Grammer Operator Presence Switch Kit

SKU: 7961

$95.00

KM Grammer Seat Cover Kits

SKU: 8065

$199.00

KM MSG85/95 Lateral Isolator Kit

SKU: 8400

$382.00

Specifications

Features:

Assembly is required (seat and suspension do not come attached)
Durable Black/Gray Matrix Fabric covering
Contoured foam cushions for maximum operator comfort
Tapered back support with adjustable backrest for added comfort and versatility
Backrest extension for extra backrest height
Seat cushion depth/tilt and angle adjustment for custom fit
Fold-up armrests allow for easy access to the seat
Accepts operator presence switch
Slide rails provide fore/aft adjustment ensuring operator comfort
Self-contained 12-Volt air compressor with 4" suspension travel
Side controls
Fore/aft isolator
Suspension stroke up to 7"
Manual weight adjustment
110 - 285 lb weight adjustment with weight indicator
Height adjustment of 3"
Shock absorber adjustments for individual comfort

Seat & Suspension Kit (PN: 6975) Includes:

Grammer 731 Seat Top
Grammer MSG95 Air Suspension
Pedestal
Install Hardware
Installation Instructions

Available Options:

Swivel Kit (PN: 5007)
Lumbar Support Kit (PN: 8455)
Retractable Seat Belt Kit (PN: 7996)
Operator Presence Switch Kit (PN: 7961)
KM Grammer Seat/Backrest Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8065)
KM Grammer Backrest Extension Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8066)
MSG85/95 Lateral Isolator Kit* (PN: 8400)

*The MSG85/95 Lateral Isolator Kit will only work if a Grammer 700 Series seat top is being used.

Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):

Replacement Fold-Up Armrests: Left-Hand (PN: 8538) or Right-Hand (PN: 8539)
Replacement Fold-Up & Adjustable Armrests: Left-Hand (PN: 7966) or Right-Hand (PN: 7967)
Replacement Backrest Extension in Black/Gray Matrix Fabric (PN: 8365)
Replacement Backrest Extension Install Kit (PN: 8573)
Replacement Backrest Cushion in Black/Gray Matrix Fabric (PN: 7995)
Replacement Seat Cushion in Black/Gray Matrix Fabric (PN: 8251)
Replacement LH or RH Backrest Adjustment Handle Kit (PN: 8448)
Replacement Seat Belt Cover Kit (PN: 8372)
Replacement Seat Depth/Tilt Kit (PN: 8594)
Replacement Seat Depth Guide Kit (PN: 8724)
Replacement Slide Rail Kit (PN: 6048)
Replacement 12-Volt Air Compressor Kit (PN: 7993)
Replacement Airbag Kit (PN: 8020)
Replacement MSG95A/AL & G Air Hose Kit (PN: 8719)
Replacement MSG95 Fore/Aft Isolator Handle (PN: 8572)
Replacement MSG95 Fore/Aft Isolator Kit (PN: 8210)
Replacement MSG95 Fore/Aft Isolator Lock Kit (PN: 8513)
Replacement MSG95 Shock Kit (PN: 8294)
Replacement Suspension Switch (PN: 8023)
Replacement MSG95 Wear Parts Kit (PN: 8716)
Replacement Swing Arm Kit (PN: 8131)
