Complete Case IH Magnum-MX Series Maxxum LED Light Kit
$2,060.00
High Quality Product
Industry Experience
Quick Shipping
Customer Support
Use this complete plug and play replacement LED Light Kit for all Hood, Front and Rear Upper Cab, Rear Fender and Mid Mount Lights on Case IH® Magnum and MX Series Maxxum tractors.
Save yourself time and money with LED Lights that are IP68 rated so that no dust will get in your light and your light can be fully and continuously submerged in water, but there will be no side effects. These lights have filters that will eliminate unwanted radio and electromagnetic frequencies from external sources. Their die-cast aluminum housing/heatsink gives them long-lasting durability for a high quality and long service life. Aluminum housing is specifically designed to dissipate heat away from the internal electronics, which increases light output and improves performance. This light is designed to handle severe environmental conditions.
This LED Light features a durable polycarbonate lens, it is built to be RoHS compliant, and comes with stainless steel hardware. The color of light LEDs emit is near the color spectrum of the mid-day sun and allows the human eye to function and view objects better to improve your work environment.
Save yourself time and money with LED Lights that are IP68 rated so that no dust will get in your light and your light can be fully and continuously submerged in water, but there will be no side effects. These lights have filters that will eliminate unwanted radio and electromagnetic frequencies from external sources. Their die-cast aluminum housing/heatsink gives them long-lasting durability for a high quality and long service life. Aluminum housing is specifically designed to dissipate heat away from the internal electronics, which increases light output and improves performance. This light is designed to handle severe environmental conditions.
This LED Light features a durable polycarbonate lens, it is built to be RoHS compliant, and comes with stainless steel hardware. The color of light LEDs emit is near the color spectrum of the mid-day sun and allows the human eye to function and view objects better to improve your work environment.
Special Notes
Please Note: This complete LED light kit works with tractor model years 2014 & older with wraparound upper cab lights. If you have a newer model tractor with oval upper cab lights, this kit will not be a complete replacement.
Lights will bolt directly into factory light housing.
Tractors with additional rear cab side windshield mounted lights will have to purchase 2 side mount lights in addition to this kit.
Lights will bolt directly into factory light housing.
Tractors with additional rear cab side windshield mounted lights will have to purchase 2 side mount lights in addition to this kit.
Available Options
9 Total Upsell Products
Specifications
Features:
Manufacturer's Limited Lifetime Warranty
- Tiger Lights CASEKIT14 Light Kit
- Driving, flood, flood/spot or amber flashing/flood beam pattern
- 45,000 effective lumens
- 510 watts
- Input voltage: 12-Volt to 24-Volt
- Plug and play wiring for easy install
- Use original mount and wiring

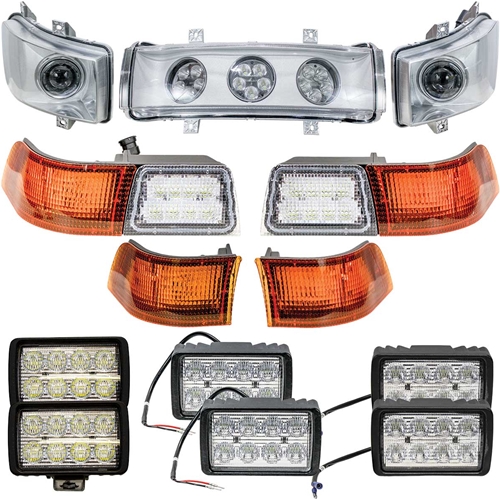

- Kit includes: 13 lights (3 front hood, 1 left-hand front upper cab corner, 1 right-hand front upper cab corner, 1 left-hand rear upper cab corner, 1 right-hand rear upper cab corner, 2 rear upper cab, 2 rear fender and 2 mid mount lights), connectors, adapters and hardware
- 1 LED light is 14.87" x 9.94" x 7.21" (W x H x D)
- Driving beam pattern
- 1,200 effective lumens
- 30 watts
- 2.5 amp draw
- Features a DOT and E-Marked light pattern, specifically designed for road travel
- 1 LED light is 14.87" x 9.94" x 7.21" (W x H x D)
- Driving beam pattern
- 1,200 effective lumens
- 30 watts
- 2.5 amp draw
- Features a DOT and E-Marked light pattern, specifically designed for road travel
- 1 LED light is 20.75" x 8.6" x 6.9" (W x H x D)
- Flood/spot beam pattern
- 15,000 effective lumens
- 15 LEDs
- 150 watts
- 15 amp draw
- Replaces current OEM lights and housing
- Includes 3 LED lights with connectors attached to aluminum housing
- 1 LED light
- Amber flashing/flood beam pattern
- Amber light watts: 17W + 12W resistor
- Amber light: 2.4 amp draw
- White light: 3,000 effective lumens
- White light: 8 LEDs
- White light: 30 watts
- White light: 3.3 amp draw
- Plug and play wiring for easy install
- 1 LED light
- Amber flashing/flood beam pattern
- Amber light watts: 17W + 12W resistor
- Amber light: 2.4 amp draw
- White light: 3,000 effective lumens
- White lights: 8 LEDs
- White light: 30 watts
- White light: 3.3 amp draw
- Plug and play wiring for easy install
- 1 LED light
- Amber flashing/flood beam pattern
- Watts: 17W + 12W resistor
- 2.4 amp draw
- Plug and play wiring for easy install
- 1 LED light
- Amber flashing/flood beam pattern
- Watts: 17W + 12W resistor
- 2.4 amp draw
- Plug and play wiring for easy install
- 2 LED lights are 6" x 3.5" x 3" (W x H x D)
- Flood beam pattern
- 3,600 effective lumens
- 8 LEDs
- 40 watts
- 3.33 amp draw
- Bottom mount
- Plug and play wiring for easy install
- 2 LED lights are 6" x 3.5" x 3" (W x H x D)
- Flood beam pattern
- 3,600 effective lumens
- 8 LEDs
- 40 watts
- 3.33 amp draw
- Comes with a hollow bolt to easily run the wire to hide under the fender
- Plug and play wiring for easy install
- 2 LED lights are 6" x 3.5" x 3" (W x H x D)
- Flood beam pattern
- 3,600 effective lumens
- 8 LEDs
- 40 watts
- 3.3 amp draw
- Side mount bracket
- Installation may require wire splicing into original wiring
Manufacturer's Limited Lifetime Warranty
Applications
Case IH® Magnum and MX Series Maxxum Tractors:
- Magnum Series: Magnum 180, Magnum 190, Magnum 200, Magnum 210, Magnum 215, Magnum 220, Magnum 225, Magnum 235, Magnum 240, Magnum 245, Magnum 250, Magnum 260, Magnum 275, Magnum 280, Magnum 290, Magnum 305, Magnum 310, Magnum 315, Magnum 335, Magnum 340, Magnum 370, Magnum 380
- MX Series Maxxum: MX215, MX245, MX275, MX305
