Toyota 7F-8F-THDC Forklift Seat & Mechanical Susp

SKU: 8648

$866.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

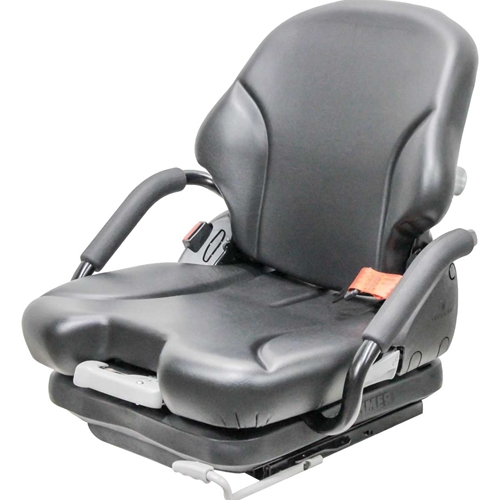

The Uni Pro™ - Toyota 7F-8F-THDC Series Forklift Seat & Mechanical Suspension is a premium seat that is designed to significantly reduce vibrations in forklift equipment. This unique drop in replacement offers every driver the ultimate level of individual comfort.

Special Notes

Please Note: Seat cushion must not touch vehicle in order to ensure reliable function in operator presence detector.

If you purchase the Replacement Backrest Kit (PN: 8466), you will lose the ability to have lumbar support and a backrest extension kit, unless you cut those parts out of your old backrest kit.

Available Options

KM 136 Armrests

SKU: 7885

$92.00

KM 136/Grammer 5X1 Backrest Extension...

SKU: 8015

$132.00

KM 136 Document Pouch

SKU: 8450

$42.00

KM 136 Isolator Kit

SKU: 7918

$292.00

KM Grammer Seat Cover Kits

SKU: 8065

$199.00

Specifications

Applications

More Info

Maintenance

Reviews

Features:

Grammer MSG65/531 Seat
Durable Black Vinyl covering
Low-profile mechanical suspension with suspension travel of 2.36"
Vacuum formed narrow seat cushion of 18.5"
Asymmetrical backrest shape to make driving backwards more comfortable
Adjustable backrest in increments of 2.5° adds comfort and versatility
Mechanical lumbar support to help prevent lower back pain
Hip restraint guards for safety and to maintain seating position
Orange retractable seat belt with switch for added safety
Slide rails provide fore/aft adjustment
Weight indicator with adjustment of 110 - 375 lbs
Comes standard with operator presence switch
Includes necessary 12.91" rail spacing with friction rail mounting for direct fit

Available Options:

Left-Hand Armrest (PN: 7885)
Right-Hand Armrest (PN: 7884)
Headrest in Black Vinyl (PN: 8015)
Document Pouch (PN: 8450)
Isolator Kit (PN: 7918)
KM Grammer Seat/Backrest Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8065)
KM Grammer Backrest Extension Cover Kit in Alcanta Two-Tone Gray Fabric (PN: 8066)

Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):

Replacement Backrest Cushion in Black Vinyl (PN: 8151)
Replacement Seat Cushion in Black Vinyl (PN: 8152)
Replacement Retractable Seat Belt Kit (PN: 7887)
Replacement Seat Belt Cover Kit (PN: 8370)
Replacement Backrest Panel Kit (PN: 8466)
Replacement Backrest Adjustment Handle Kit (PN: 8399)
Replacement Operator Presence Switch (PN: 8672)
Replacement Weight Adjustment Handle Kit (PN: 8088)
Replacement Weight Adjustment Handle Kit & Block (PN: 8593)
Replacement Wire Harness (PN: 8674)

Multiple Applications for Construction Equipment. Ideal for Toyota® Forklifts:

May Fit Some Models - Check Bolt Pattern to Ensure Proper Fit (Refer to Technical Drawings in Documents Tab)

Toyota® 7FBCU, 8FBC, 8FBE, 8FBM, 8FDU, 8FGU, 8FD-U, 8FG-U, 8FGCU, 8FGC-U, 05-8FBM and THDC Series Forklifts:

7FBCU Series: 7FBCU35, 7FBCU45, 7FBCU55
8FBC Series: 8FBC15U, 8FBC18U, 8FBCU20, 8FBCU25, 8FBCU28, 8FBCU30, 8FBCU32, 8FBCHU25, 8FBCU20-COMP, 8FBCU25-COMP
8FBE Series: 8FBE15U, 8FBE18U, 8FBE20U, 8FBEH18U, 8FBES15U
8FBM Series: 8FBM40T, 8FBM45T, 8FBM50T
8FDU Series: 8FDU15, 8FDU18, 8FDU20, 8FDU25, 8FDU30, 8FDU32
8FGU Series: 8FGU15, 8FGU18, 8FGU20, 8FGU25, 8FGU30, 8FGU32
8FD-U Series: 8FD35U, 8FD40U, 8FD45U, 8FD50U
8FG-U Series: 8FG35U, 8FG40U, 8FG45U, 8FG50U
8FGCU Series: 8FGCU15, 8FGCU18, 8FGCU20, 8FGCU25, 8FGCU30, 8FGCU32, 8FGCSU20
8FGC-U Series: 8FGC35U, 8FGC45U, 8FGC55U, 8FGC60U, 8FGC70U, 8FGC35U-BCS, 8FGC45U-BCS, 8FGC55U-BCS, 8FGC55U-PRS
05-8FBM Series: 05-8FBM20T, 05-8FBM25T, 05-8FBM30T, 05-8FBM35T, 05-8FBMK25T, 05-8FBMK30T
THDC Series: THDC1800-24, THDC1800-36, THDC2200-24, THDC2200B-24
