KM 146 Seat & Mech Suspension | Concentric Seat

Options:

SKU: 8694

$499.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

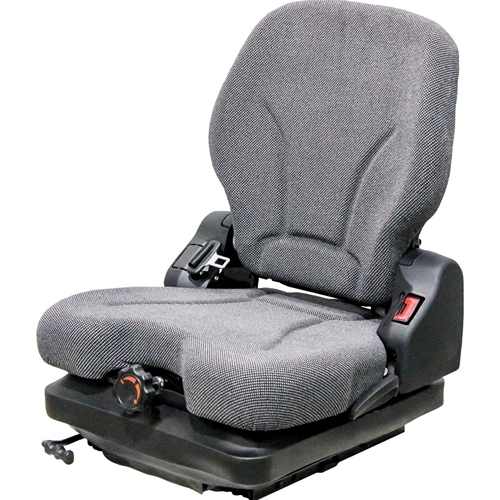

The Uni Pro™ - KM 146 Seat & Mechanical Suspension is a durable seat with a low-profile mechanical suspension that features universal mounting patterns to add maximum comfort while you’re busy at work. Ideal for forklift, lawn mower, material handling, skid steer and turf equipment.

Special Notes

Please Note: Similar to the Uni Pro™ - KM 136 Seat & Mechanical Suspension

Available Options

KM 146 Adjustable Armrest Kit

SKU: 8695

$86.00

KM 146 Backrest Extensions

SKU: 8698

$43.00

Specifications

Features:

Durable fabric or vinyl covering
Low-profile mechanical suspension with 2" stroke
Vacuum formed covers with steel frame
Contoured foam cushions to ensure operator comfort
Adjustable backrest 75° forward and 30° back adds comfort and versatility
Fold-down back cushion for easy access behind the seat and to protect the seat from outside weather
Retractable seat belt with interlock switch included for added safety
Plastic document box to store owner’s manual and other valuables
110 - 286 lb weight adjustment with knob
6.3" maximum fore/aft single-lock slide rail travel
Comes standard with operator presence switch
Slides can be mounted laterally at 11.25", 12.59" or 12.91"
Rubber molded suspension cover to keep components free of dust and dirt

Mounting patterns include (W x L): 12.875" and 11.25" side-to-side

Available Color Options:

Black/Gray Fabric (PN: 8694)
Black Vinyl (PN: 8692)
Gray Vinyl (PN: 8693)

Available Options:

Armrest Kit (PN: 8695)
Backrest Extension in Black/Gray Fabric (PN: 8698)
Backrest Extension in Black Vinyl (PN: 8696)
Backrest Extension in Gray Vinyl (PN: 8697)

Applications

Multiple Applications for Compact Tractor, Forklift, Industrial, Material Handling, Skid Steer, Small Construction and Turf Equipment. Ideal for Ariens®, Cub Cadet®, Dixon®, Exmark®, Ferris®, Grasshopper®, Gravely®, Hustler®, John Deere®, Kubota®, New Holland®, Simplicity®, Walker® and Woods® Lawn Mowers, Bobcat® Skid Steers and Toolcats, Case® Dozers, Rollers and Skid Steers, Caterpillar® Excavators, Forklifts, Rollers, Skid Steers, Telehandlers and Wheel Loader, Crown® Forklifts, Ditch Witch® Trenchers, John Deere® Compact Utility Tractor and Skid Steers, and Volvo® Articulated Dump Truck:

May Fit Some Models - Check Bolt Pattern to Ensure Proper Fit (W x L - 12.875" and 11.25" side-to-side)

Ariens® Lawn Mower: 2148

Bobcat® Skid Steers and Toolcats:

Skid Steers: 463, 751C, 753G, 763, 763G, 773, 773G, 773GT, 853, 863, 863F, 863G, 863H, 863HF, 864, 864EH, 864F, 864G, 864H, 864T, 873, 873C, 873F, 873G, 883, A300, S70, S100, S130 (SN 527411001 and A00E11001 & Above), S150, S160, S160HF, S175, S175HF, S185, S185HF, S205, S220, S220H, S250, S250HF, S250K, S300, S330, S510 (SN A3NK11001 and AZN411001 & Above), S530 (SN A7TW11001 and AZN711001 & Above), S550 (SN A3NM11001 and AZN911001 & Above), S570 (SN A7U811001 and AZNC11001 & Above), S630 (SN B2L511001 & Above), S650 (SN S1ML11001 and 1MLS11001 & Above), T110, T140, T180 (SN 527511001, 527611001 and A3LL11001 & Above), T190 (SN 519411001, 527011001, 527811001, 531611001, 531711001 and A3LN11001 & Above), T190G, T190H, T190K, T200, T200G, T200H, T250, T250G, T250H, T300 (SN 522011001, 525411001, 532111001, A5GU11001 and A5GV11001 & Above), T300ACS, T300G, T300H, T300K, T320, T320H, T450 (SN AUVP11001 and B1EM11001 & Above), T550 (SN A7UJ11001 and AJZV11001 & Above), T590 (SN A3NR11001 and A3N511001 & Above), T630 (SN A7PU11001 and AJDT11001 & Above), T650 (SN A3P011001, A3P111001, 1MLT11001 and B2KZ11001 & Above), T750 (SN ANKA11001 and ATF611001 & Above), T870
Toolcats: 5600, 5610

Replaces Bobcat® Skid Steer Part Numbers: 6675319, 6675321, 7149786, 7167603

Case® Dozers, Rollers and Skid Steers:

Dozers (Equipment or Seat Modifications May Be Required for Proper Fit): 1150H, 1150K
Rollers: DV201, DV202, DV204
Skid Steers: 40XT, 60XT, 70XT, 75XT, 85XT, 90XT, 95XT, 410, 420, 420CT, 430, 435, 440, 440CT, 445, 445CT, 450, 450CT, 465, 1530, 1830, 1835, 1835B, 1835C, 1838, 1840, 1845, 1845B, 1845C, 1845S, SR130, SR150, SR175, SR200, SR220, SR250, SV185, SV250, SV300, TR270, TR320, TV380

Caterpillar® Excavators, Forklifts, Rollers, Skid Steers, Telehandlers and Wheel Loader:

Excavators (Equipment or Seat Modifications May Be Required for Proper Fit): 301.6C, 301.8C, 302.5C, 303.5C CR, 303.5D CR, 305C CR, 305D CR, 305.5D CR
Forklifts (Equipment or Seat Modifications May Be Required for Proper Fit): C3000, C3500, C4000, C5000, C5500, C6000, C6500, CC4000, DP40K, DP40KL, DP45K, DP50K, DP70E, E10000 36V, E10000 48V, E12000 36V, E12000 48V, E3000 36V, E3000 48V, E3500 36V, E3500 48V, E4000 36V, E4000 48V, E5000 36V, E5000 48V, E5500 36V, E5500 48V, E6000 36V, E6000 48V, E6500 36V, E6500 48V, E7000 36V, E7000 48V, E8000 36V, E8000 48V, EC4000 36V, EC4000 48V, ET3000 36V, ET3000 48V, ET3500 36V, ET3500 48V, ET4000 36V, ET4000 48V, EX5000 36V, EX5000 48V, GC35K, GC40K, GC40K PRHSTR, GC40K STR, GC45K PRHSTR, GC55K, GC55K PRSTR, GC55K STR, GC60K, GC70K, GC70K PRH, GC70K PRHSTR, GC70K STR, GP40K, GP40KL, GP45K, GP50K, KC45KSWB, P17500, P20000, P22000, P26500, P3000, P30000, P33000, P3500, P36000, P4000, P4000-D, P5000, P5500, P5500-D, P6000, P6000-D, P6500, P6500-D, P7000, P7000-D, PC4000
Rollers (Equipment or Seat Modifications May Be Required for Proper Fit): CB14, CB14 XW, CB22, CB24, CB34, CB34 XW, CB54 XW, CC24, CC34
Skid Steers: 246C, 256C, 262C, 272C, 277C, 287C, 289C, 297C, 299C
Telehandlers: TH225, TL642, TL943, TL1055, TL1255
Wheel Loader: 904H

Crown® Forklifts: FC4500, SC4500

Cub Cadet® Lawn Mowers: S6031, S7237
Replaces Cub Cadet® Part Number: 2004228

Ditch Witch® Trenchers: R65, V30

Dixon® Lawn Mowers: Grizzly, Ram Mag, Speed ZTR, ZTR 4516K

Exmark® Lawn Mowers: Front Runner, Lazer Z, Lazer Z Advantage, Lazer Z EFI

Ferris® Lawn Mowers: IS500Z, IS1500Z

Grasshopper® Lawn Mowers: 614, 718, 720K, 7210

Gravely® Pro Master, Pro Ride and Pro Turn Series Lawn Mowers:

Lawn Mowers: 152Z, 252Z, 260Z, RapidXZ
Pro Master Series: 148i, 160i, 252HXDZ, 252M, 252XDZ, 260H, 260HXDZ, 260HXDZ LPG, 260M, 260MXDZ, 266H, 266HXDZ, 272H, 272HXDZ, 320, 1252i
Pro Ride Series: 254, 260, 266
Pro Turn Series: 148, 152, 160, 252, 260, 266

Replaces Gravely® Part Numbers: 045230, 046220, 03947200, 04052900, 09112400

Hustler® Lawn Mowers: Fastrak 54, Fastrak Super Duty 60, Sport 48, Super Z60, Super Z66, Z66

John Deere® Compact Utility Tractor, Lawn Mowers and Skid Steers:

Compact Utility Tractor (Drilling Required): 4100
Lawn Mowers (Drilling Required): 318, 727A, 997 Z-Trak, 1420, 1435, 1445, 1545, 1550, 1565, 1570, 1575, 1580, F725, Z2820A, Z840A
Skid Steers (Will Fit and Bolt Into Skid Steers, but Wire Splicing is Required): 240, 250, 260, 270, 280, 312GR, 313, 314G, 315, 316GR, 317, 317G, 318D, 318E, 318G, 319D, 319E, 320, 320D, 320E, 323D, 323E, 324E, 325, 326D, 326E, 328, 328D, 328E, 329D, 329E, 330G, 331G, 332, 332D, 332E, 332G, 333D, 333E, 333G, CT315, CT322, CT332

Replaces John Deere® Skid Steer Part Numbers: AT315073, AT344971, AT347476, AT361224, AT405894, AT434492

Kubota® Lawn Mowers: F2880, ZD221, ZD323, ZD326, ZG227, ZG327

New Holland® Lawn Mower (Drilling in Application Mounting Deck is Required): MC22

Simplicity® Lawn Mowers (Drilling in Mounting Deck is Required for Cobalt Model): Cobalt, ZT3000 24hp

Volvo® Articulated Dump Truck: A25BM

Walker® Lawn Mowers: MDD (SN 85932-Present), MTL (SN 85932-Present), MTLEFI (SN 85932-Present)
Replaces Walker® Part Numbers: 6103-14 and 6103-24

Woods® Lawn Mowers (Drilling in Mounting Deck is Required): 5140, 6170, 6180
