John Deere 7R/8R-8RT/9R-9RT-9RX KM 1300 Air Seat

SKU: 6994

$2,870.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

Don't like your active seat? Update to a passive seat today!

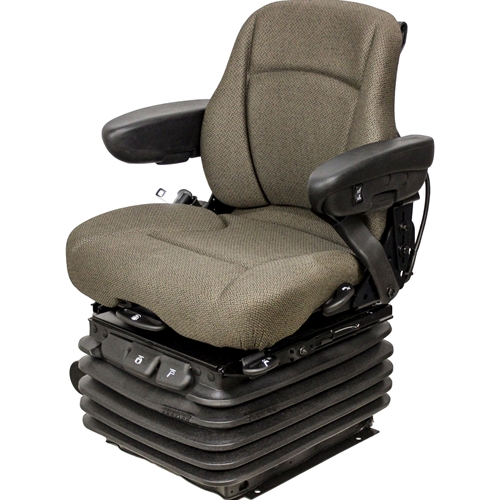

Complete replacement seat and suspension for John Deere® 7R, 8R, 8RT, 9R, 9RT or 9RX Series tractors.

The Uni Pro™ - KM 1300 Seat & Suspension is ideal in applications where a superior ride is needed. The semi-active suspension system provides improved vibration reduction combined with the vibration reduction system you'll have a seat that improves comfort, performance and productivity.

Special Notes

Please Note: Replacement seat & suspension will not fit if the original seat is manufactured by Grammer.

Specifications

Features:

Luxury brown fabric covering
Contoured foam cushions for added comfort
Reclining backrest
Adjustable mechanical lumbar support
Durable vinyl document pouch stores owner's manual and other valuables
Padded tilt-up armrests with angle adjustment
Retractable seat belt provides additional safety
Front mounted controls for easy access to adjust the swivel, side-to-side and fore/aft isolator
Fore/aft isolator absorbs jarring for extra comfort
Side-to-side isolator provides lateral movement
Weight adjustment of 100-305 lbs
Integrated slide rails provide 6" fore/aft adjustment
+/- 25-degree swivel
Air expansion tank
Vibration reduction system
Semi-active suspension system
Rubber molded suspension cover

Seat & Suspension Kit (PN: 6994) Includes:

Uni Pro™ - KM 1300 Seat & Air Suspension
Pedestal
Wiring Harness
Install Hardware
Installation Instructions

Available Maintenance Items (ONLY FIT THE K&M SEAT ASSEMBLY):

Replacement 2" Retractable Seat Belt Kit (PN: 7977)
Replacement 3" Retractable Seat Belt Kit (PN: 8417)
Replacement Seat Cushion in Charcoal Gray Fabric w/Operator Presence Switch (PN: 8002)
Replacement Air Switch (PN: 8509)
Replacement 12-Volt Compressor Kit (PN: 8174)

Applications

John Deere® 7R, 8R, 8RT, 9R, 9RT and 9RX Series Tractors:

7R Series: 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R
8R Series: 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8320R, 8335R, 8345R, 8360R, 8370R, 8400R
8RT Series: 8295RT, 8310RT, 8320RT, 8335RT, 8345RT, 8360RT, 8370RT
9R Series: 9360R, 9370R, 9410R, 9420R, 9460R, 9470R, 9510R, 9520R, 9560R, 9570R, 9620R
9RT Series: 9460RT, 9470RT, 9510RT, 9520RT, 9560RT, 9570RT
9RX Series: 9420RX, 9470RX, 9520RX, 9570RX, 9620RX
