KM 424 Seat & Air Suspension | Sears 3000/30

SKU: 8748

$1,050.00

High Quality Product

Industry Experience

Quick Shipping

Customer Support

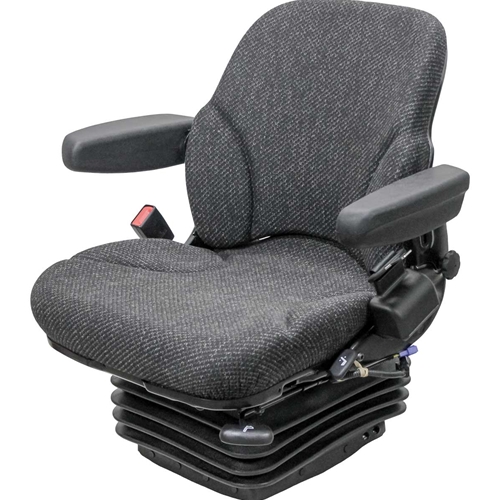

The Uni Pro - KM 424 Seat & Suspension is a high-quality replacement seat and compact air suspension assembly suitable for multiple compact agriculture and construction applications. It adds maximum comfort in every rugged terrain to help you endure long hours of hard work.

Special Notes

Please Note: This seat does not come with command arm mounts. Customer will need to take off command arm brackets from the old seat and re-use with the new seat.

Available Options

KM 424 Backrest Cushion

SKU: 8750

$154.00

KM 424 Seat Cushion

SKU: 8749

$154.00

Specifications

Features:

Sears 3000/30 Series Seat/Suspension
Durable Charcoal Gray Fabric covering
Compact frame air suspension with self-contained 12-Volt air compressor with up to 5.12" suspension stroke
Ergonomic contoured foam cushions to ensure operator comfort
Contoured metal seat and backrest pans
Adjustable backrest angle for individual fit and comfort
Adjustable mechanical lumbar support to help prevent lower back pain
Adjustable fold-up armrests
Retractable seat belt provides additional safety
99 - 397 lb adjustable weight adjustment with indicator
Slide rails provide 6.3"-7.87" fore/aft adjustment
High-performance fixed damper
Comes standard with operator presence switch
Rubber molded suspension cover to keep components free of dust and dirt

Mounting pattern: 5.51" side-to-side and 9.65" front-to-back

Complies with ISO 7096 vibration, ISO 11112 dimension, SAE J1163, ISO 5353, and ISO 3462 standards.

Maintenance Items:

Replacement Backrest Cushion in Charcoal Gray Fabric (PN: 8750)
Replacement Seat Cushion in Charcoal Gray Fabric (PN: 8749)

Applications

Multiple Applications for Compact Construction, Compact Tractor, Harvester, Industrial, Skid Steer, Tractor and Utility Equipment. Ideal for Caterpillar® Excavator, Off-Highway Trucks, Rollers/Compactors, Skid Steers, and Wheel Loaders:

May Fit Some Models - Check Bolt Pattern to Ensure Proper Fit (W x L - 5.51" x 9.65")

Caterpillar® Excavator, Off-Highway Trucks, Rollers/Compactors, Skid Steers, and Wheel Loaders:

Excavator: C4.4
Off-Highway Trucks: 770G, 772G, 773E, 777D
Rollers/Compactors: C4.4, C32, CB7, CB8, CB10, CB13, CB15, CB16, CB46B, CB-44B, CB-54B, CB-64B, CB-66B, CB-68B, CCS9, CD8, CD10, CD-44B, CD-54B, CP54B, CP56B, CP68B, CP74B, CP76B, CP-54B, CP-56B, CP-68B, CP-74B, CS54B, CS56B, CS64B, CS66B, CS68B, CS74B, CS76B, CS78B, CS79B, CS-54B, CS-56B, CS-64B, CS-66B, CS-68B, CS-74B, CS-76B, CS-78B, CS-79B, CW12, CW34, CW-16, CW-34
Skid Steers: 226D, 226D3, 232D, 232D3, 236D, 236D3, 239D, 239D3, 242D, 242D3, 246C, 246D, 246D3, 249D, 249D3, 256C, 257D, 257D3, 259D, 259D3, 262C, 262C2, 262D, 262D3, 272C, 272D, 272D XHP, 272D2, 272D3, 272D3 XE, 277C, 277C2, 277D, 279C, 279C2, 279D, 279D3, 287C, 287C2, 287D, 289C, 289C2, 289D, 289D3, 297C, 297D, 297D2, 299C, 299D, 299D XHP, 299D2, 299D3, 299D3 XE
Wheel Loaders: 924K, 930K, 938K

Replaces Caterpillar® Part Numbers: 258-4055, 476-1133, 526-4160, 526-8513
