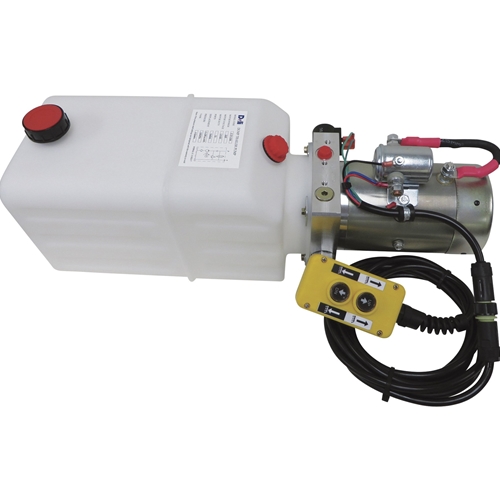

NorTrac 12-Volt DC Hydraulic Dump Trailer Power Unit - Single Acting
$474.99
High Quality Product
Industry Experience
Quick Shipping
Customer Support
This NorTrac 12-Volt DC Single-Acting Power Unit can be used for OEM or replacement applications. The power up, gravity down circuit allows for fast lifting and lowering. Ideal for use with forklifts, electric pallet trucks, scissor lift tables, mini lift tables, dump trucks/trailers, or a variety of other applications utilizing remote pendant controls.
Special Notes
Please Note: Item is factory shipped. A drop ship fee will apply in addition to the shipping cost. Please allow extra time for delivery.
Specifications
Features:
- Single-acting power unit for dump trailers
- Dimensions: 28.5" L x 6.625" W x 6.75" H
- Model number: YBZ5-F2.1D1W2/WUUTT1
- Ship weight of 32.4 lbs
- Large 2.5-gallon reservoir capacity
- Heavy-duty 12-volt, 2 HP motor delivers 3,000 maximum RPM and maximum 2,900 PSI
- 1.5 GPM flow rate
- 2.4cc displacement
- 9/16-18 SAE O-rings on the outlet ports
- Low amperage draw
- Electric pendant control for easy operation
- Fast-acting pump for rapid raising
- Built-in manual override allows for manual lowering in case of a power outage
- 9/16" port outlet size
- Includes (1) 12V DC dump trailer power unit
Applications
Ideal for Rapidly Lifting or Lowering a Dump Trailer
