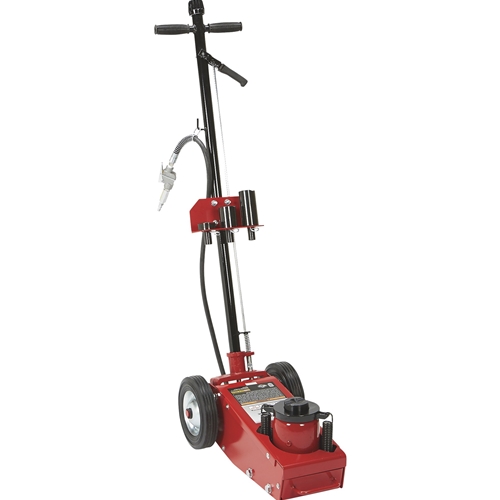

Strongway 22-Ton Quick-Lift Air/Hydraulic Floor Jack

SKU: 46248

$499.99

High Quality Product

Industry Experience

Quick Shipping

Customer Support

This pneumatic heavy-duty Strongway 22-Ton Quick-Lift Air/Hydraulic Service Floor Jack has a powerful air motor to lift heavy loads. A quick-lift system allows the lifting ram to encounter the load faster. The compact design easily fits between dual tandem axles. Ideal for lifting axles, farm vehicles, heavy-duty machinery, industrial equipment and more. Includes one each 3/4", 2-1/4", and 4" height adapters. Some assembly required. Meets and complies with ASME PASE 2019 safety standards.

Special Notes

Please Note: Item is factory shipped. A drop ship fee will apply in addition to the shipping cost. Please allow extra time for delivery.

Specifications

Features:

Constructed of high-grade steel and built to exacting standards for quality and durability
Dimensions: 21.75" L x 12.43" W x 9.875" H
Ship weight of 101 lbs
22-ton lift capacity
8.44" minimum lift height and 16.94" maximum lift height
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup
High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Piston-ram is treated and polished to resist skiving
Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability
Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40°F and 105°F
Efficient trigger pushbutton control reduces lifting time
Built-in bypass hydraulic system prevents accidental overloading
Mechanical spring ram return automatically resets the ram back to the minimum starting height
3-position pumping handle makes it easy to reach under vehicles with low overhangs
Large 8" rear wheels provide easy positioning and portability
Extra-long T-handle for easy positioning and moving
21.73" x 12.44" base adds stability
Rated air pressure: 100 to 120 PSI
8 to 12 CFM @ 90 PSI required
44,000 lb rated capacity
Built in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
Meets and complies with ASME PASE 2019 safety standards
Includes (1) quick lift service jack, (1) handle, (1) 3/4" height adapter, (1) 2-1/4" height adapter, and (1) 4" height adapter

Manufacturer’s Limited 1-Year Warranty
