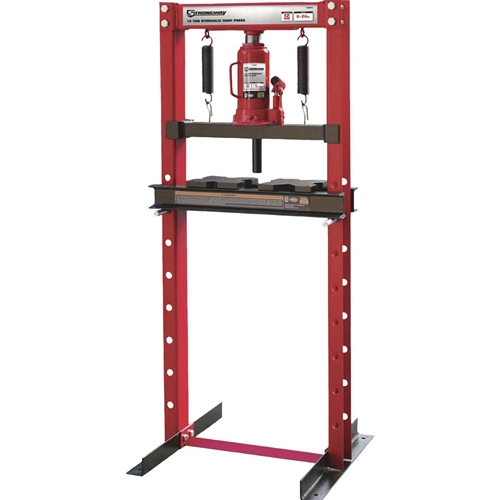

Strongway 12-Ton Hydraulic Shop Press

SKU: 46270

$199.99

High Quality Product

Industry Experience

Quick Shipping

Customer Support

This 12-Ton Strongway Hydraulic Shop Press is great for straightening, stamping, bending and pressing any component that is hard to handle. Polished inner cylinder walls extend the life of the hydraulic seals to minimize abrasion and wear, while the cylinder ram and pistons are also polished and chromed, guided by high-performance seals, wear rings and dust seals. Adjustable lower bolster. Some assembly required. Meets ASME ASP 2010 standards.

Special Notes

Please Note: Item is factory shipped. A drop ship fee will apply in addition to the shipping cost. Please allow extra time for delivery.

Specifications

Features:

Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability
Dimensions: 20.875" L x 19.68" W x 48.43" H
Ship weight of 95 lbs
12-ton maximum pressure
6.875" stroke length
Bed opening of 3.12"
Maximum working distance of 24"
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup
High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Piston-ram is treated and polished to resist skiving
Piston-ram utilizes a Y-Style polyurethane sealing ring with backup ring, preventing load from falling slowly or bypassing oil drift
Hydraulic pump is constructed of QT450 Nodular Iron which has a higher strength than other types of iron resulting in greater durability
Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures between 40°F and 105°F
Extra-long handle included for easy pumping force
Built in ISO certified facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector
Meets ASME ASP 2010 standards
Includes (1) shop press, (1) hardware kit, and (2) solid steel press plates

Manufacturer’s Limited 1-Year Warranty
