Uni Pro™ - KM 225 Bucket Seat

Multiple Applications for Industrial, Lawn Mower, Multi-Purpose Construction, Skid Steer and Turf Equipment. Ideal for AGCO®, Allis Chalmers®, Ariens®, Cub Cadet®, Dixie Chopper®, Dixon®, Exmark®, Ferris®, Grasshopper®, Gravely®, Husqvarna®, Hustler®, Jacobsen®, John Deere®, Kubota®, Land Pride®, New Holland®, Scag®, Simplicity®, Toro® and Woods® Lawn Mowers, John Deere® and New Holland® Compact Utility Tractors, John Deere® Gators, Arctic Cat®, Bobcat®, Club Car®, John Deere®, Motrec® and Toro® Utility Vehicles, Bomag®, Dynapac® and Wacker® Rollers, Caterpillar®, John Deere® and Takeuchi® Excavators, Genie®, JCB® and Skytrak® Telehandlers, JCB® and John Deere® Forklifts, Montana® Tractor, Taylor-Dunn® Tow Tractors, Terramite® Sweeper, and Caterpillar®, John Deere® and Komatsu® Skid Steers:

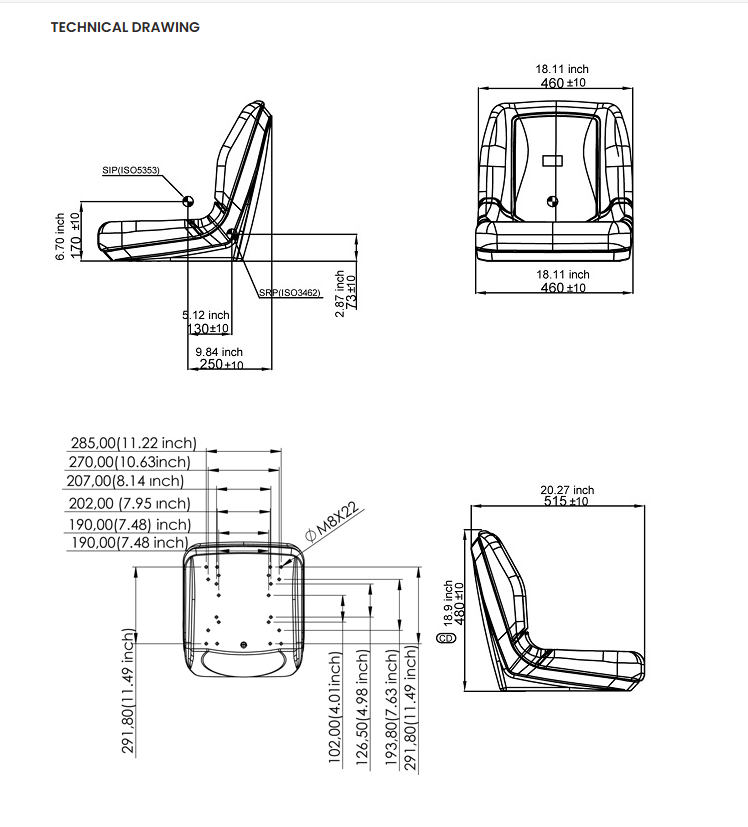

May Fit Some Models - Check Bolt Pattern to Ensure Proper Fit (Refer to Technical Drawings in More Info Tab)

AGCO® Lawn Mowers: 512G, 524G, 1616H, 524H, 1620HV, 1718H, 1720, 1820, 1823, 1827, 2020, 2023, 2025, 2027, 3170522H, ZT1850

Allis Chalmers® Lawn Mower: 130 24hp

Arctic Cat® Utility Vehicles:

• 550 Series: 2009 Prowler 550 4x4 Flatbed, 2010 Prowler 550 XT 4x4, 2011 Prowler 550 XT, 2012 Prowler 550 XT, 2013 Prowler 550 XT
• 650 Series: 2006 Prowler XT 650 H1 Automatic 4x4, 2007 Prowler XT 650 H1 Automatic 4x4, 2007 Prowler 650 H1 Automatic 4x4, 2008 Prowler XT 650 H1 Automatic 4x4, 2008 Prowler 650 H1 Automatic 4x4, 2009 Prowler 650 XT Automatic 4x4
• 700 Series: 2008 Prowler XTX 700 H1 Automatic 4x4, 2009 Prowler 700 XT 4x4, 2009 Prowler 700 XTX 4x4 LE, 2009 Prowler 700 XTX 4x4, 2010 Prowler 700 XTX 4x4, 2011 Prowler 700 XTX, 2012 Prowler 700 XTX, 2013 Prowler 700 XTX
• 1000 Series: 2009 Prowler 1000 XTZ 4x4, 2010 Prowler 1000 XTZ 4x4, 2011 Prowler 1000 H2 EFI XTZ, 2012 Prowler 1000 XTZ, 2013 Prowler 1000 XTZ

Replaces Arctic Cat® Part Number: 1506-925

Ariens® Lawn Mowers: HVZ 1840, Max Zoom 48, Max Zoom 52, Max Zoom 60, Max Zoom 2552, Max Zoom 2560, Mini Zoom 1434, Mini Zoom 1534, Mini Zoom 1540, Zoom 1540, Zoom 1634, Zoom 1640, Zoom 1740, Zoom 1744, Zoom 1840, Zoom 1842, Zoom 1944, Zoom 2044, Zoom 2048, Zoom 2348, Zoom 2350, Zoom 2352, Zoom 2552, Zoom XL 42, Zoom XL 48, Zoom XL 54, Zoom XL 1844, Zoom XL 2042, Zoom XL 2044, Zoom XL 2148, Zoom XL 2348, Zoom XL 2548

Bobcat® Utility Vehicles: 2200 (SN 235211001 and A5KR11001 & Above), 2200D
Replaces Bobcat® Part Numbers: 102707301CC, 103267001CC

Bomag® Roller: BW900-50

Caterpillar® Mini Excavator and Skid Steers:

• Mini Excavator: 301.8

• Skid Steers: 216, 226, 242, 246

Club Car® Utility Vehicle (Will Only Fit if Original has Bucket Seat): XRT1550

Cub Cadet® Lawn Mowers: 2146, 3654, 3660, Enforcer 44, Enforcer 48, Enforcer 54, FMZ250, GT2542, GT2544, GT2550, GT2554, HDS 2185, LT 2180, Recon 48, Recon 60, Workman, Z-Force 44, Z-Force 48, Z-Force 50, Z-Force 54, Z-Force 60 KH, Z-Force 60 KW, Z-Force S48, Z-Force S60
Replaces Cub Cadet® Part Numbers: 01004834, 02001943, 2002976, 757-04042, 757-04070

Dixie Chopper® Lawn Mowers: LT1800-34 (Year 2007), LT1800-44 (Year 2007), LT2000-44 (Serial Number SE5000001 & Up - Year 2005), LT2000-50 (SN SE3000001 & Up - Year 2003), LT2000-50D (SN SE3000001 & Up - Year 2003), LT2000-50D (SN SE5043301 & Up - Year 2005), LT2300-50D (Year 2007), LT2400-44D (SN SE5000001 & Up - Year 2005), LT2400-50D (SN SE5043301 & Up - Year 2005), LT2500-44D (Year 2007), T2500-50D (Year 2007), LT2700-60D (SN SE5043301 & Up - Year 2005), LT2700-60D (Year 2007), LX2000 (Year 1997), LX2000-42 (SN 8916618-8919915 - Year 1998), LX2001 (Year 1997), LX2001-42 (SN 2034040-2038888 - Year 2002), LX2001-42 (SN 3039028 & Up - Year 2003), LX2001-42 (SN 4044008 & Up - Year 2004), LX2001-42 (SN 8916618-8919915 - Year 1998), LX2002-42 (SN 9920013-0030089 - Year 1999-2000), LX2400 (Year 1997), LX2400-42 (SN 8916618-8919915 - Year 1998), LX2401 (Year 1997), LX2401-42 (SN 8916618-8919915 - Year 1998), SP2800EFI-60 (SN 4043076 & Up - Year 2004), X1701-50 (SN 2034040-2038888 - Year 2002), X2000 Year 1997), X2000-50 (SN 8916618-8919915 - Year 1998), X2000-50 (SN 9920013-0030089 - Year 1999-2000), X2001-50 (SN 2034040-2038888 - Year 2002), X2001-50 (SN 3039028 & Up - Year 2003), X2001-50 (SN 4044008 & Up - Year 2004), X2001-60 (SN 4043076 & Up - Year 2004), X2002-50 (SN 9920013-0030089 - Year 1999-2000), X2003-50 (SN 5051479 & Up - Year 2005), X2200-50 (SN 9920013-0030089 - Year 1999-2000), X2202-50 (SN 9920013-0030089 - Year 1999-2000), X2303-50 - Year 2007), X2400 (Year 1997), X2400-50 (SN 8916618-8919915 - Year 1998), X2500-50 (SN 9920013-0030089 - Year 1999-2000), X2502-50 (SN 9920013-0030089 - Year 1999-2000), X2503-50 (SN 3039028 & Up - Year 2003), X2503-50 (SN 4044008 & Up - Year 2004), X2503-50 (SN 5051479 & Up - Year 2005), X2503-60 (SN 3039028 & Up - Year 2003), X2503-60 (SN 4043076 & Up - Year 2004), X2503-60 (SN 5051029 & Up - Year 2005), X2703-60 (SN 6057191 & Up - Year 2006), X2703-60 (Year 2006), X2703-60 (Year 2007), XF2200-50 (SN 9920013-0030089 - Year 1999-2000), XF2200-60 (SN 9920013-0030089 - Year 1999-2000), XF2300-50 (SN 3039028 & Up - Year 2003), XF2500-60 (SN 2034040-2038888 - Year 2002), XF2500-60 (SN 9920013-0030089 - Year 1999-2000), XF2700-50 (SN 4044008 & Up - Year 2004), XF2700-50 (SN 5051479 & Up - Year 2005), XG2503-50 (SN 6057191 & Up - Year 2006), XG2503-50 (Year 2006), XG2503-50 (Year 2007), XG2703-60 (SN 5051029 & Up - Year 2005), XG2703-60 (SN 6057191 & Up - Year 2006), XG2703-60 (Year 2007), XG2703-72 (Year 2006), XK2503-50 (SN 3039028 & Up - Year 2003), XK2503-60 (SN 3039028 & Up - Year 2003), XK2503-60 (SN 4043076 & Up - Year 2004), XT3000-60 (SN 4043076 & Up - Year 2004), XW2000-60 (SN 9920013-0030089 - Year 1999-2000), XW2002-60 (SN 9920013-0030089 - Year 1999-2000), XW2200-60 (SN 9920013-0030089 - Year 1999-2000), XW2202-60 (SN 9920013-0030089 - Year 1999-2000), XW2300-60 (SN 2034040-2038888 - Year 2002), XW2400-60 (SN 1027270-1034039 - Year 2001), XW2400-60 (SN 2034040-2038888 - Year 2002), XW2500-60 (SN 1027270-1034039 - Year 2001), XW2500-60 (SN 2034040-2038888 - Year 2002), XW2500-60 (SN 9920013-0030089 - Year 1999-2000), XW2502-60 (SN 9920013-0030089 - Year 1999-2000), XW2600-60 EFI (SN 2034040-2038888 - Year 2002), XWF2700-60 (SN 4043076 & Up - Year 2004), XWK2501-60 (SN 1027270-1034039 - Year 2001), XWK2501-60 (SN 2034040-2038888 - Year 2002), XWK2503-60 (SN 1027270-1034039 - Year 2001), XWK2503-60 (SN 2034040-2038888 - Year 2002), XXG2703-72 (SN 5051009 & Up - Year 2005), XXG2703-72 (SN 6057191 & Up - Year 2006), XXG2703-72 (Year 2007), XXWD5000-72 (SN 1027270-1034039 - Year 2001)
Replaces Dixie Chopper® Part Number: 400200

Dixon® Lawn Mowers: 4515B (Year 2004), 4516K (Year 2004), 4518K (Year 2004), Speed ZTR, ZTR 4423 (Years 2001-2003), ZTR 4516K (Years 2001-2003), ZTR 4518B (Years 2001-2003), ZTR 4518K (Years 2002-2003), ZTR Classic (Year 2003)
Replaces Dixon® Part Number: 10059

Dynapac® Rollers: CA134, CA134PD

Exmark® Lawn Mowers: PHZ19KA342 (SN 600000-669000 - Year 2005), PHZ19KA343 (SN 720000 & Up), PHZ19KA343 (SN 790000 & Up), PHZ19KA343 (SN 820977 & Up), PHZ19KA443 (SN 600000-669000 - Year 2006), QST20BE422 (SN 790000 & Up), QST22BE482 (SN 670000 & Up), QST22BE482 (SN 720000 & Up), QST22BE482 (SN 790000 & Up), QST23KC482 (SN720000 & Up), QST23KC522 (SN 720000 & Up), QST24BE522 (SN 670000 & Up - Year 2007), QST24BE522 (SN 720000 & Up), QST24BE522 (SN 790000 & Up)
Replaces Exmark® Part Numbers: 109-3128, 109-6399

Ferris® Lawn Mowers: IS500Z, IS700Z, IS1500Z

Genie® Telehandlers: GTH-636, GTH-636C, GTH-644 (SN GTH0610-14001 - GTH0810-14001), GTH-842 (SN GTH0806A-8418 - GTH0810A-14000), GTH-844 (SN GTH0813-16606), GTH-1056 (SN GTH1010-14001 - GTH1014-19340)
Replaces Genie® Part Number: 123137

Grasshopper® Lawn Mowers: 614, 718, 720K, 7210

Gravely® Lawn Mowers: 18G, 152Z, 252Z, 260Z, 8199G, ZT42, Compact Pro 44, Everride YJ, HVZ1840, Mini-ZT1434, Mini-ZT1534, Mini-ZT1540, PM144M, PM144MXDZ, PM144XDZ, PM144Z, PM148H, PM148M, PM148MXDZ, PM148XDZ, PM148Z, PM152M, PM152MXDZ, PM152XDZ, PM152Z, PM160M, PM160XDZ, PM160Z, PM250Z, PM252M, PM260M, PM260Z, PM272Z, PM310, PM34M, PM34Z, PM44M, PM44Z, PM460, PM48Z, Pro 34, ZT1232, ZT1434, ZT1440, ZT1534, ZT1540, ZT1634, ZT1640, ZT1740, ZT1742, ZT1840, ZT1842, ZT1844, ZT1844XL, ZT1944, ZT2044, ZT2044XL, ZT2044XLP, ZT2048, ZT2148, ZT2148XL, ZT2250, ZT2252, ZT2344, ZT2348, ZT2348XL, ZT2348XLP, ZT2350, ZT2352, ZT2444 HD, ZT2448, ZT2548, ZT2552, ZT2552 HD, ZT2560 HD, ZT2648 HD, ZT2660, ZT2760 HD, ZT48 HD, ZT52 HD, ZT60 HD, ZTXL 1634, ZTXL 2042, ZTXL 2548, ZTXL 2554, ZTXL 42, ZTXL 48, ZTXL 54
Replaces Gravely® Part Numbers: 00190900, 00366300, 00367800, 00458600, 01546100, 01598400, 01599200, 02999600, 03829400, 09210500, 09214500, 09230000

Husqvarna® Lawn Mower: GTH2254XP

Hustler® Lawn Mowers (Factory Installed Rivets are Required for Hustler Applications): FasTrak 54, FasTrak Super Duty 60, Sport 48, Super Z60, Super Z66, Z66, 250 (SN 923300 Year 1/85-4/85), 251 (SN 923425 & 923433), 262 (SN 923474 Year 10/88), 320 (SN 923284 Year 4/85-12/89), 340 (SN 923292 Year 4/85-12/89), 400 (SN 923326-SN 4/85-12/89), 440 (SN 923763 Year 6/87-12/89), 2500 (SN 924993 Year 1/97 & Up), 2500 (SN 925248 Year 2/96), 3200 (SN 925073 Year 3/96 & Up), 3400 (SN 925362 Year 4/97 & Up), 3400 (SN 925370 Year 4/97 & Up), 4500 (SN 924738 Year 8/92 & Up), 4600 (SN 925008 Year 3/95 & Up), 4600 (SN 925008CA), 251 Briggs & Stratton (SN 923417 Year 2/88-4/89), 251K (SN 923912 Year 2/88-4/89), 251K (SN 925214 Year 1/96 & Up), 260K (SN 925222 Year 1/96 & Up), 262 Tractor (SN 923441, 923474 & 923482), 3200 Rear Steer (SN 925610 Year 10/98 & Up), 3200ZT (SN 925552 Year 10/98 & Up), 3200ZT (SN 926071 Year 5/00 & Up), 3400 Rear Steer (SN 925578 Year 10/98 & Up), 3400 Rear Steer 4x4 (SN 925586 Year 10/98 & Up), 3400ZT (SN 925560 Year 10/98 & Up), 3400ZT (SN 926089 Year 5/00 & Up), 60" Deck 3-Way (SN 923441, 923474 & 923482), BAC-PAC (SN 923417, 923425, 923433 & 924225), BAC-PAC Grass Catcher (SN 925225), BDMC1 SD Briggs & Stratton 17.5/42 (SN 930255), BDMC1 SD Briggs & Stratton 21/46 (SN 930263), BDMC1 SD Briggs & Stratton 26/54 (SN 930271), BDMC1 SD Kawasaki 18/42 (SN 930669), BDMC1 SD Kawasaki 20/46 (SN 930677), BDMC1 SD Kawasaki 22/54 (SN 930685), C-142 Briggs & Stratton 17.5 HP (SN 929547), C-146 Briggs & Stratton 21 HP (SN 929554), C-154 Briggs & Stratton 26 HP (SN 930081), Hustler Sport 16/42 (SN 929463), Hustler Sport 16/42 (SN 929869), Hustler Sport 16/42 CA (SN 929463), Hustler Sport 16/48 (SN 929471), Hustler Sport 16/48 CA (SN 929471), Hustler Sport 17.5/42 (SN 929125), Hustler Sport 17.5/42 (SN 929851), Hustler Sport 17.5/42 CA (SN 929125), Hustler Sport 21/48 (SN 929133), Hustler Sport 21/48 CA (SN 929133), Hustler Sport 26/54 (SN 929596), Mini FasTrak 15/36" (SN 927343), Mini FasTrak 15/36" (SN 927376), Mini FasTrak 16/42" (SN 927368), Mini FasTrak 17/42" (SN 927350), ROPS (SN 532259), ROPS (SN 923383), ROPS (SN 924753), SPT Briggs & Stratton SD 17.5/42 (SN 930198), SPT Briggs & Stratton SD 21/48 (SN 930214), SPT Briggs & Stratton SD 26/54 (SN 930230), SPT Kawasaki SD 18/42 (SN 930206), SPT Kawasaki SD 20/48 (SN 930222), SPT Kawasaki SD 22/54 (SN 930651), SPT Kawasaki SD US 18/42 (SN 930206US), SPT Kawasaki SD US 20/48 (SN 930222US), Standard Seat Package (SN 392076), Walk Behind Sulky with 907 Seat (SN 345637K), Zeon 42" (SN 929141)
Replaces Hustler® Part Numbers: 601807, 031484, 306860K, 392076, 539437, 762898, 793679

Jacobsen® Lawn Mower: Grooms Master

JCB® Forklift and Telehandlers:

• Forklift: 930
• Telehandlers: 520, 520-40, 520-50

John Deere® Lawn Mowers, Excavator, Forklift, Gators, Skid Steers and Utility Vehicles:

• Lawn Mowers (Factory Installed Rivets or Brackets are Required for Some Applications): 165, 240, 245, 260, 265, 285, 318, 320, 325 (Serial No. 70001 & Up), 335 (Serial No. 70001 & Up), 345 (Serial No. 70001 & Up), 415 (Serial No. 70001 & Up), 425 (Serial No. 70001 & Up), 445, 455, 1642 V-Twin G, 1642 V-Twin H, 1642HS, 1646 V-Twin H, 1646HS, 1846HMS, 1846HV, 2520A, F710 (Serial No. 090001 & Up), F725 (Serial No. 090001 & Up), F735, G100, GT235, GT275, GX345, L100, L105, L107, L110, L111, LA115, L118, L120, L130, L135, L145, LA125, LA145, LA155, LT150, LX266, LX277, LX288, SST16, SST18, X720, X724, X749, Z225, Z440, Z465
• Compact Utility Tractors: 4105, 4200, 4210, 4300, 4310, 4400, 4410, 4500, 4510, 4600, 4610, 4700, 4710
• Excavator: 890
• Forklift: 488E
• Gator 4x2 - SN19951 & Up
• Gator 6x4 - SN 20789 & Up
• Gator Diesel - Serial No. 2298 & Up
• Gator Trail, Worksite, Turf, E-Gator Utility, CS, CX, 4 X 2 HPX, 4 X 4 HPX, 4 X 4 Trail HPX, TX, TX Turf, TH 6 X 4, TE, XUV
• Skid Steers: 70, 125, 240, 7775, 8875
• Utility Vehicles: 2200, 2200D

Replaces John Deere® Part Number: AM107759 (Black), AM108058 (Yellow), AT63325, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358

Komatsu® Skid Steers: CK30-1, CK35-1, SK714-5, SK815, SK815-5, SK815-5N, SK818, SK820, SK820-5, SK820-5N, SK820-5T, SK1020-5, SK1020-5N, SK1020-5T, SK1026, SK1026-5, SK1026-5N

Kubota® Lawn Mowers: F2880, F3560, GF1800, GR2110, TG1860, ZD221, ZD323, ZD326, ZG227, ZG327

Land Pride® Lawn Mowers (Will Only Fit if Your Original is a Non-Suspension Seat, Will NOT Fit the Original Suspension): Z44, Z52, Z60, Z72, ZR44, ZR52
Replaces Land Pride® Part Numbers: 356-112A, 839-284C

Montana® Tractor: 5720

Motrec® Utility Vehicle: E330

New Holland® Lawn Mower and Compact Tractors:

• Lawn Mower (Factory Installed Rivets Are Required: MY19
• Compact Tractors: T1010, T1110, T1030

Scag® Lawn Mowers: Z-Cat SMZC-24A (SN B4700001-B4799999), Z-Cat SMZC-36A (SN B4600001-B4699999), Z-Cat SZC36A-16HN (SN B3900001-B3999999), Z-Cat SZC36A-17KAI (SN B4000001-B4099999), Z-Cat SZC36A-19KAI (SN B4100001-B4199999), Z-Cat SZC42A-19KAI (SN B4400001-B4499999), SMZC-36A (SN A460001-A469999), SMZC-42A (SN A470001-A479999), SZC36A-17KA (SN A420001-A429999), SZC36A-19KA (SN A980001-A989999), SZC42A-19KA (SN A440001-A449999)
Replaces Scag® Part Number: 483116

Simplicity® Lawn Mowers:

• Broadmoor Series: 16hp, 25hp
• Cobalt Series
• Conquest Series
• Coronet Series: 13hp
• Landlord Series: DLX
• Legacy Series: 20hp, XL 27hp
• Prestige Series: 23hp, 25hp
• ZT3000 Series: 24hp

Skytrak® Telehandlers: 5028, 8042, 8042-2, 9038

Takeuchi® Excavator: TB108

Taylor-Dunn® Tow Tractors: TC-30/60, TC-80/120

Terramite® Sweeper: TSS38

Toro® Lawn Mowers and Utility Vehicles (Factory Installed Rivets Are Required):

• Lawn Mowers (Factory Installed Rivets Are Required): 15-35 HXL, 314-8, Reelmaster 2300D (may require drilling), Sand Pro® 2020, Sand Pro® 3020, Sand Pro® 3040, Sand Pro® 5020, ZX525 (drilling is required to install Operator Presence Switch in model 15-35 HXL)
• Utility Vehicles (Factory Installed Rivets Are Required): Workman 1110, Workman 2050E, Workman 2100, Workman 2110, Workman 2300, Workman 3200, Workman 3300D, Workman 4300, Workman 5700D

Wacker® Rollers: RD11A, RD12A, RD12A-90

Woods® Lawn Mowers: CA1942K 19HP Kawasaki with 42" Side Discharge (SN 872295F), CA1952K 19HP Kawasaki with 52" Side Discharge (SN 872296F), CA2136B 21HP Briggs & Stratton with 36" Deck, CZ1736K 17HP Kawasaki with 36" Deck, CZ1736K 17HP Kawasaki with 36" Side Discharge (SN 872291F), CZ1942K 19HP Kawasaki with 42" Deck, CZ1948K 19HP Kawasaki with 48" Deck, CZ1952K 19HP Kawasaki with 52" Deck, CZR2242B 22HP Briggs & Stratton with 42" Side Discharge (SN 872311F), CZR2652B 26HP Briggs & Stratton with 52" Side Discharge (SN 872313F), ME1952K 19HP Briggs & Stratton with 52" Side Discharge, ME1952K 19HP Kawasaki with 52" Side Discharge (SN 872218F), E2052B Mow'n Machine (SN Starting with 00300), ME2052B Mow'n Machine (SN Ending with 0200 & Up), ME2661B 26HP Briggs & Stratton with 61" Side Discharge (SN 00070 & 872219F), RZ1848B Mow'n Machine, RZ2052B Mow'n Machine, RZ2552BE Mow'n Machine
Replaces Woods® Part Numbers: 198057, 4126406
